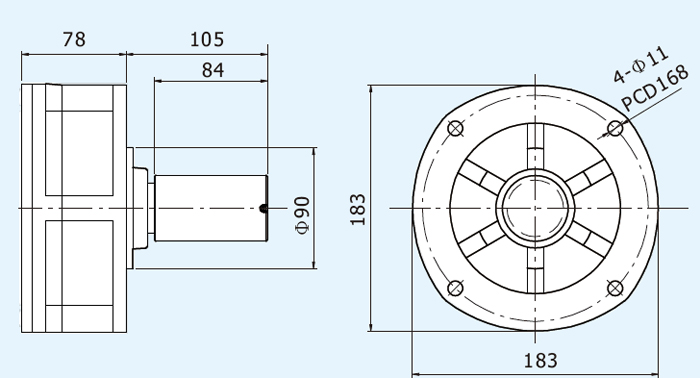

≡ Dimension Length (Pinion Included ) ： 375mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G7H-06A | 0.6 | 4 | 200V - 600V | 1/10 | 172 | 143 | M3.5x18T M3.5x23T M4.0x18T M4.0x22T |
21 |
| G7H-03B | 0.3 | 6 | 115 | 95 | ||||
| G7H-02D | 0.2/0.06 | 4/12 | 172/57 | 143/47 | ||||
≡ Dimension Length (Pinion Included ) ： 405mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G7H-09A | 0.9 | 4 | 200V - 600V | 1/10 | 172 | 143 | M3.5x18T M3.5x23T M4.0x18T M4.0x22T |
25 |
| G7H-04B | 0.4 | 6 | 115 | 95 | ||||
| G7H-06D | 0.6/0.2 | 4/12 | 172/57 | 143/47 | ||||
≡ Dimension Length (Pinion Included ) ： 430mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G7H-11A | 1.1 | 4 | 200V - 600V | 1/10 | 172 | 143 | M3.5x18T M3.5x23T M4.0x18T M4.0x22T |
28 |
| G7H-06B | 0.6 | 6 | 115 | 95 | ||||
| G7H-09D | 0.9/0.3 | 4/12 | 172/57 | 143/47 | ||||
