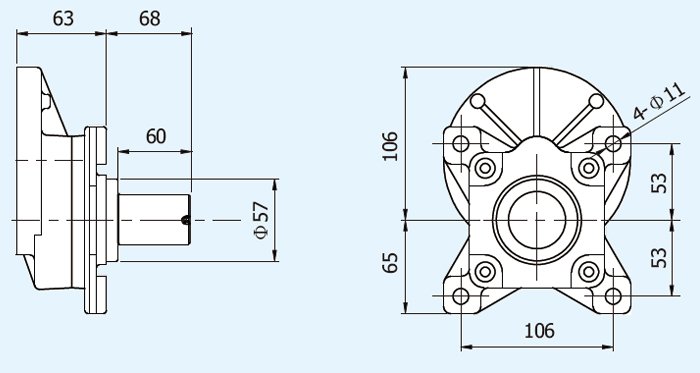

≡ Dimension Length (Pinion Included ) ： 315mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G5E-02A | 0.25 | 4 | 200V - 600V | 1/8 | 215 | 180 | M3.5x10T M3.5x12T M3.5x10T M3.5x12T |
13 |
| G5E-01B | 0.18 | 6 | 143 | 120 | ||||
| G5E-04A | 0.4 | 4 | 200V - 600V | 1/8 | 215 | 180 | 14 | |
| G5E-02B | 0.25 | 6 | 143 | 120 | ||||
| G5E-02D | 0.25/0.08 | 4/12 | 215/72 | 180/60 | ||||
≡ Dimension Length (Pinion Included ) ： 335mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G5E-05A | 0.5 | 4 | 200V - 600V | 1/8 | 215 | 180 | M3.5x10T M3.5x12T |
16 |
| G5E-03B | 0.3 | 6 | 143 | 120 | ||||
| G5E-04D | 0.4/0.13 | 4/12 | 215/72 | 180/60 | ||||
