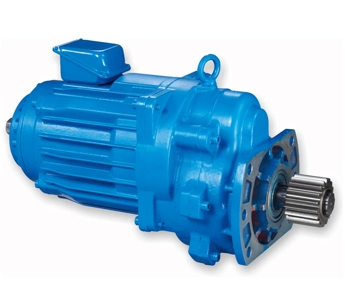

G3 Series Soft start/stop

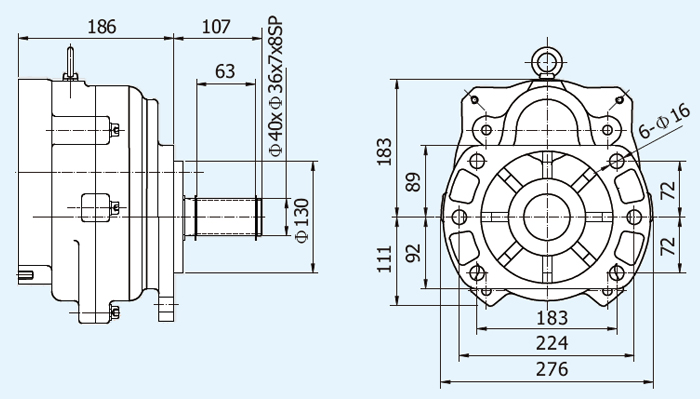

≡ Dimension Length (Pinion Included ) ： 605mm

MODEL	POWER (kw)	POLE (P)	VOLTAGE	RATIO	RPM.		PINION (Replaceable)	WEIGHT (kg)
					60 Hz	50 Hz
G3F-22A	2.2	4	200V - 600V	1/12	143	119	M3.5 M4.0 M6.0	87
G3C-22A	2.2	4	200V - 600V	1/20	86	72		87
G3F-30A	3.0	4	200V - 600V	1/12	143	119		91
G3F-20B	2.0	6			95	79		91
G3C-30A	3.0	4	200V - 600V	1/20	86	72		91
G3C-20B	2.0	6			57	48		91

≡ Dimension Length (Pinion Included ) ： 625mm

MODEL	POWER (kw)	POLE (P)	VOLTAGE	RATIO	RPM.		PINION (Replaceable)	WEIGHT (kg)
					60 Hz	50 Hz
G3F-37A	3.75	4	200V - 600V	1/12	143	119	M3.5 M4.0 M6.0	94
G3F-22B	2.2	6			95	79
G3C-37A	3.75	4	200V - 600V	1/20	86	72		94
G3C-22B	2.2	6			57	48

≡ Dimension Length (Pinion Included ) ： 675mm

MODEL	POWER (kw)	POLE (P)	VOLTAGE	RATIO	RPM.		PINION (Replaceable)	WEIGHT (kg)
					60 Hz	50 Hz
G3F-22C	2.2/1.1	4/8	200V - 600V	1/12	143/72	119/60	M3.5 M4.0 M6.0	102
G3F-22D	2.2/0.75	4/12			143/47	119/39
G3C-22C	2.2/1.1	4/8	200V - 600V	1/20	86/43	72/36		102
G3C-22D	2.2/0.75	4/12			86/28	72/24
G3F-30C	3.0/1.5	4/8	200V - 600V	1/12	143/72	119/60		106
G3F-30D	3.0/1.0	4/12			143/47	119/39
G3C-30C	3.0/1.5	4/8	200V - 600V	1/20	86/43	72/36		106
G3C-30D	3.0/1.0	4/12			86/28	72/24

≡ Dimension Length (Pinion Included ) ： 695mm

MODEL	POWER (kw)	POLE (P)	VOLTAGE	RATIO	RPM.		PINION (Replaceable)	WEIGHT (kg)
					60 Hz	50 Hz
G3F-37C	3.75/1.87	4/8	200V - 600V	1/12	143/72	119/60	M3.5 M4.0 M6.0	110
G3F-37D	3.75/1.25	4/12			143/47	119/39
G3C-37C	3.75/1.87	4/8	200V - 600V	1/20	86/43	72/36		110
G3C-37D	3.75/1.25	4/12			86/28	72/24
