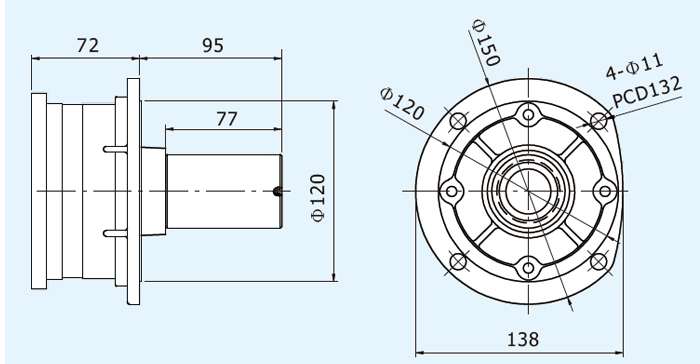

≡ Dimension Length (Pinion Included ) ： 350mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G6H-02A | 0.25 | 4 | 200V - 600V | 1/10 | 172 | 143 | M3.0x13T M3.0x15T M3.5x12T M3.5x16T |
12 |
| G6H-01B | 0.18 | 6 | 115 | 95 | ||||
| G6H-04A | 0.4 | 4 | 200V - 600V | 1/10 | 172 | 143 | 13 | |
| G6H-02B | 0.25 | 6 | 115 | 95 | ||||
| G6H-02D | 0.25/0.08 | 4/12 | 172/57 | 143/47 | ||||
≡ Dimension Length (Pinion Included ) ： 370mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G6H-05A | 0.5 | 4 | 200V - 600V | 1/10 | 172 | 143 | M3.0x13T M3.0x15T M3.5x12T M3.5x16T |
15 |
| G6H-03B | 0.3 | 6 | 115 | 95 | ||||
| G6H-04D | 0.4/0.13 | 4/12 | 172/57 | 143/47 | ||||
