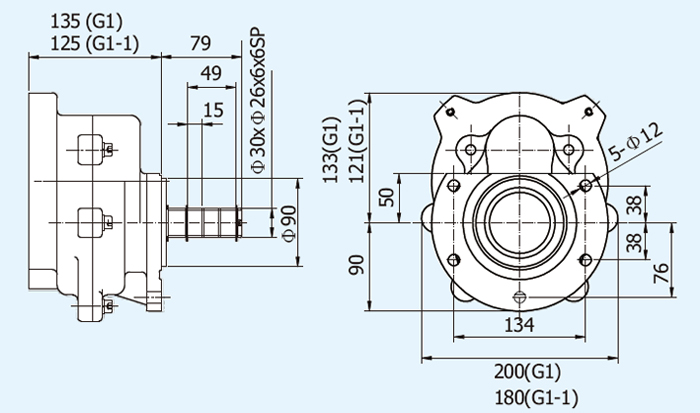

≡ Dimension Length (Pinion Included ) ： 438mm(G1) 428mm(G1-1)
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G1A-04A | 0.4 | 4 | 200V - 600V | 1/8.5 | 203 | 169 | M3.0 M3.5 M4.0 |
31 |
| G1A-03B | 0.3 | 6 | 135 | 112 | ||||
| G1A-02E | 0.2 | 8 | 101 | 84 | ||||
| G1B-04A | 0.4 | 4 | 200V - 600V | 1/15 | 115 | 96 | 31 | |
| G1-1B-04A | 0.4 | 4 | 115 | 96 | 28 | |||
| G1B-03B | 0.3 | 6 | 77 | 64 | 31 | |||
| G1B-02E | 0.2 | 8 | 58 | 48 | ||||
≡ Dimension Length (Pinion Included ) ： 470mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G1A-07A | 0.75 | 4 | 200V - 600V | 1/8.5 | 203 | 169 | M3.0 M3.5 M4.0 |
38 |
| G1A-06B | 0.6 | 6 | 135 | 112 | ||||
| G1A-04C | 0.4/0.2 | 4/8 | 203/101 | 169/84 | ||||
| G1A-04D | 0.4/0.13 | 4/12 | 203/68 | 169/56 | ||||
| G1B-07A | 0.75 | 4 | 200V - 600V | 1/15 | 115 | 96 | 38 | |
| G1B-06B | 0.6 | 6 | 77 | 64 | ||||
| G1B-04C | 0.4/0.2 | 4/8 | 115/58 | 96/48 | ||||
| G1B-04D | 0.4/0.13 | 4/12 | 115/38 | 96/32 | ||||
≡ Dimension Length (Pinion Included ) ： 510mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G1A-07B | 0.75 | 6 | 200V - 600V | 1/8.5 | 135 | 112 | M3.0 M3.5 M4.0 |
41 |
| G1A-07C | 0.75/0.375 | 4/8 | 203/101 | 169/84 | ||||
| G1A-07D | 0.75/0.25 | 4/12 | 203/68 | 169/56 | ||||
| G1B-07B | 0.75 | 6 | 200V - 600V | 1/15 | 77 | 64 | 41 | |
| G1B-07C | 0.75/0.375 | 4/8 | 115/58 | 96/48 | ||||
| G1B-07D | 0.75/0.25 | 4/12 | 115/38 | 96/32 | ||||
