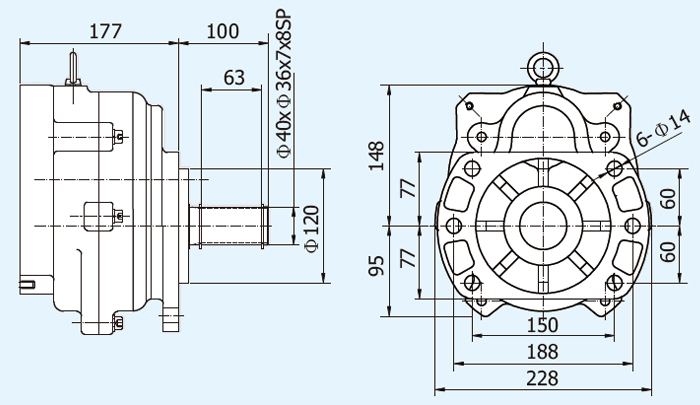

≡ Dimension Length (Pinion Included ) ： 538mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G2F-11A | 1.1 | 4 | 200V - 600V | 1/12 | 143 | 119 | M3.5 M4.0 M6.0 |
50 |
| G2C-11A | 1.1 | 4 | 200V - 600V | 1/20 | 86 | 72 | 50 | |
≡ Dimension Length (Pinion Included ) ： 550mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G2F-15A | 1.5 | 4 | 200V - 600V | 1/12 | 143 | 119 | M3.5 M4.0 M6.0 |
53 |
| G2C-15A | 1.5 | 4 | 200V - 600V | 1/20 | 86 | 72 | 53 | |
≡ Dimension Length (Pinion Included ) ： 630mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G2F-15B | 1.5 | 6 | 200V - 600V | 1/12 | 95 | 79 | M3.5 M4.0 M6.0 |
65 |
| G2F-11C | 1.1/0.55 | 4/8 | 143/72 | 119/60 | ||||
| G2F-11D | 1.1/0.37 | 4/12 | 143/47 | 119/39 | ||||
| G2C-15B | 1.5 | 6 | 200V - 600V | 1/20 | 57 | 48 | 65 | |
| G2C-11C | 1.1/0.55 | 4/8 | 86/43 | 72/36 | ||||
| G2C-11D | 1.1/0.37 | 4/12 | 86/28 | 72/24 | ||||
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G2F-18B | 1.8 | 6 | 200V - 600V | 1/12 | 95 | 79 | M3.5 M4.0 M6.0 |
68 |
| G2F-15C | 1.5/0.75 | 4/8 | 143/72 | 119/60 | ||||
| G2F-15D | 1.5/0.5 | 4/12 | 143/47 | 119/39 | ||||
| G2C-18B | 1.8 | 6 | 200V - 600V | 1/20 | 57 | 48 | 68 | |
| G2C-15C | 1.5/0.75 | 4/8 | 86/43 | 72/36 | ||||
| G2C-15D | 1.5/0.5 | 4/12 | 86/28 | 72/24 | ||||
