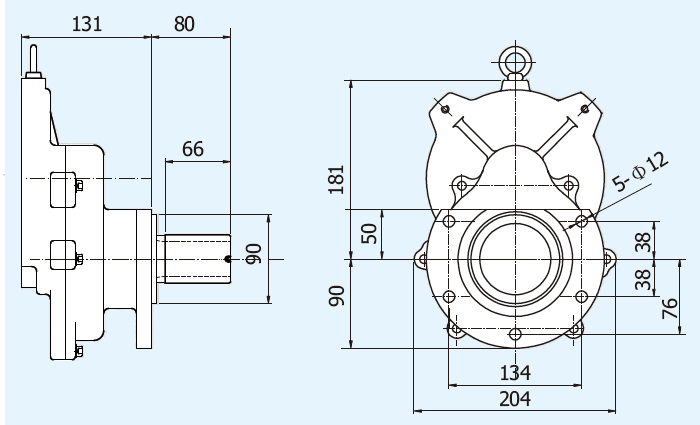

≡ Dimension Length (Pinion Included ) ： 435mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G4A-04A | 0.4 | 4 | 200V - 600V | 1/8.5 | 203 | 169 | M3.5x11T M3.5x12T M3.5x13T M3.5x15T |
30 |
| G4A-03B | 0.3 | 6 | 135 | 112 | ||||
| G4A-02E | 0.2 | 8 | 101 | 84 | ||||
≡ Dimension Length (Pinion Included ) ： 467mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G4A-07A | 0.75 | 4 | 200V - 600V | 1/8.5 | 203 | 169 | M3.5x11T M3.5x12T M3.5x13T M3.5x15T |
37 |
| G4A-06B | 0.6 | 6 | 135 | 112 | ||||
| G4A-04C | 0.4/0.2 | 4/8 | 203/101 | 169/84 | ||||
| G4A-04D | 0.4/0.13 | 4/12 | 203/68 | 169/56 | ||||
≡ Dimension Length (Pinion Included ) ： 507mm
| MODEL | POWER (kw) |
POLE (P) |
VOLTAGE | RATIO | RPM. | PINION (Replaceable) |
WEIGHT (kg) |
|
|---|---|---|---|---|---|---|---|---|
| 60 Hz | 50 Hz | |||||||
| G4A-07B | 0.75 | 6 | 200V - 600V | 1/8.5 | 135 | 112 | M3.5x11T M3.5x12T M3.5x13T M3.5x15T |
40 |
| G4A-07C | 0.75/0/375 | 4/8 | 203/101 | 169/84 | ||||
| G4A-07D | 0.75/0.25 | 4/12 | 203/68 | 169/56 | ||||
