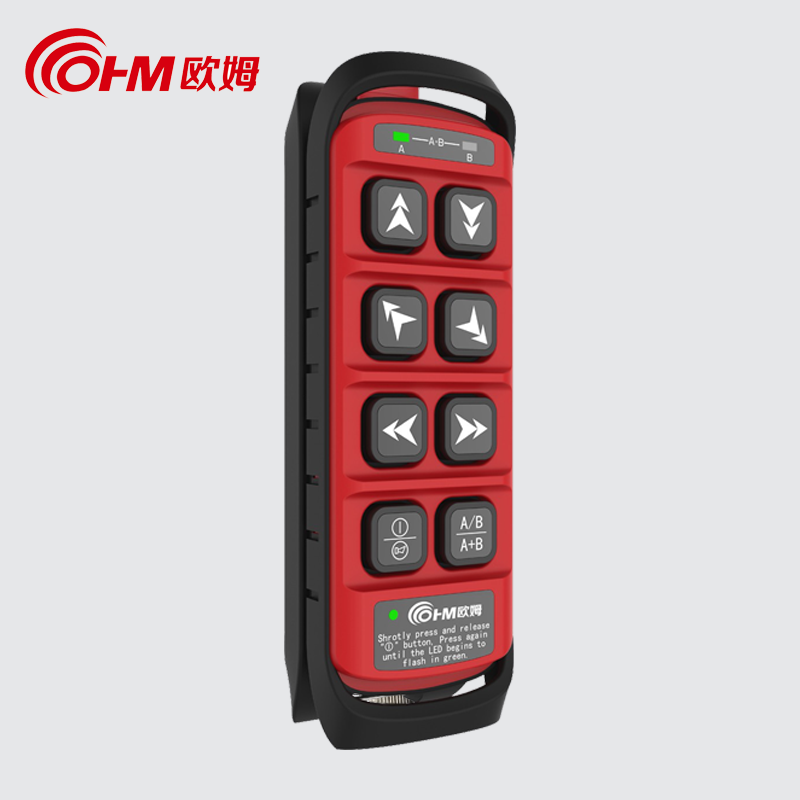

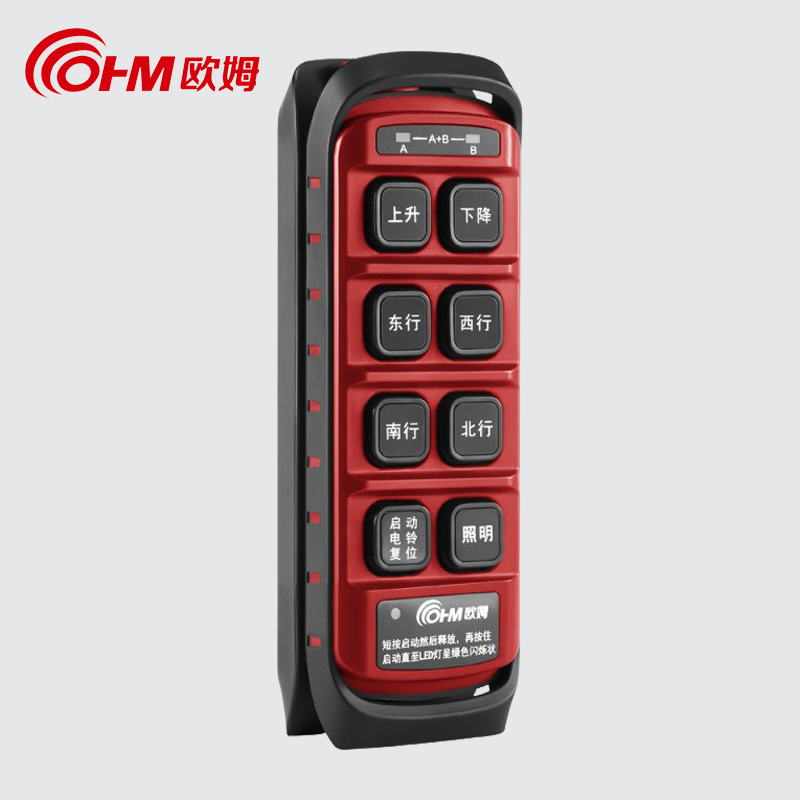

รีโมทไร้สาย 8 ปุ่ม,2 สปีด, 1 สวิตซ์ฉุกเฉิน, 1 สตาร์ท ออกแบบมาให้เหมาะสมกับผู้ใช้งาน เข้ารูปกับมือได้อย่างพอดีให้ความรู้สึกดีขณะใช้งาน ปุ่มกดอยู่ในตำแหน่งที่สามารถกดใช้งานได้ง่าย มีอายุการใช้งานในการกดมากกว่า 1 ล้านครั้ง CPU คุณภาพสูง ระยะเวลาการตอบสนอง ≤20ms ด้วยตัวเคสที่ออกแบบมาเป็นอย่างดีมากรองรับการตกกระแทกได้ดี ไม่ส่งผลถึงบอร์ดคอนโทรลด้านใน มีสมาร์ทคีย์ที่สมบูรณ์แบบ สามารถถอดออกและใส่เข้าไปที่ตัวส่งสัญญาณได้สะดวก สามารถใช้งานได้ทันที
| Frequency range | 400-470MHz |
| Transmission rate | 9600bit/s |
| Transmitted power | ≤10mW |
| Frequency tolerance | 4ppm |
| Adjacent channel rejection | >50dB |
| Modulation mode | GFSK (Gaussian Frequency Shift Keying) |
| Channel spacing | 25 Hz |
| Receiving sensitivity | -115dBm |
| Check method | CRC-1TM |
| Response time | ≤20ms |
| Transmitter weight | 320g (without battery) |
| Transmitter size | 193mm x 62mm x 50mm (length x width x height) |
| Transmitter shell material | high-strength engineering plastics |
| Working temperature range | -25℃-70℃ |
| Working humidity range | 0-97%RH |
| - JB/T8437-2015 |
| - EN ISO 13849 Class D |
| - Radio Transmission Equipment Type Approval Certificate (State Radio Regulatory Commission of the People’s Republic of China) |
| - Crane remote control device safety qualification certificate (Liao'an Institute) |
| Real-time | real-time control technology |
| Frequency control | PLL phase-locked loop |
| Special address code | 32bit>4.2 billion |
| Control distance | >100m |
| Transmitter form | button type, 8 double-speed buttons |
| Transmitter power supply | 3.6V-4.5VDC (3 AA batteries or rechargeable batteries) |
| Transmitter working current | ≤30mA (except for special systems) |
| Transmitter low voltage alarm | sound and light alarm (3.3-3.5VDC) |
| Transmitter failure alarm | multiple combinations of sound and light alarm |
| Power saving protection | automatic shutdown (can be set for 0-30 minutes) |
| Transmitter antenna | built-in |
