- สามารถสร้างดิจิตอลเอาท์พุตได้สูงสุด 24 เอาท์พุตและอนาล็อกเอาท์พุตสูงสุด 8 เอาท์พุต - คลื่น 433-434 MHz ใช้สำหรับเครื่องจักรอุตสาหกรรม - มี DCH iKey ไม่จำเป็นต้องเปลี่ยนรีโมททั้งเซ็ตหากเกิดปัญหา สามารถใช้ซิมเดิมไปใส่รีโมทใหม่ใช้งานได้เหมือนเดิม - มีอะไหล่ซัพพอร์ตตลอดอายุการใช้งาน ไม่ต้องกังวลเรื่องอะไหล่ทดแทน - รับประกัน 1 ปี สำหรับบอร์ดอิเล็กทรอนิกส์และระบบรับ-ส่งสัญญาณ

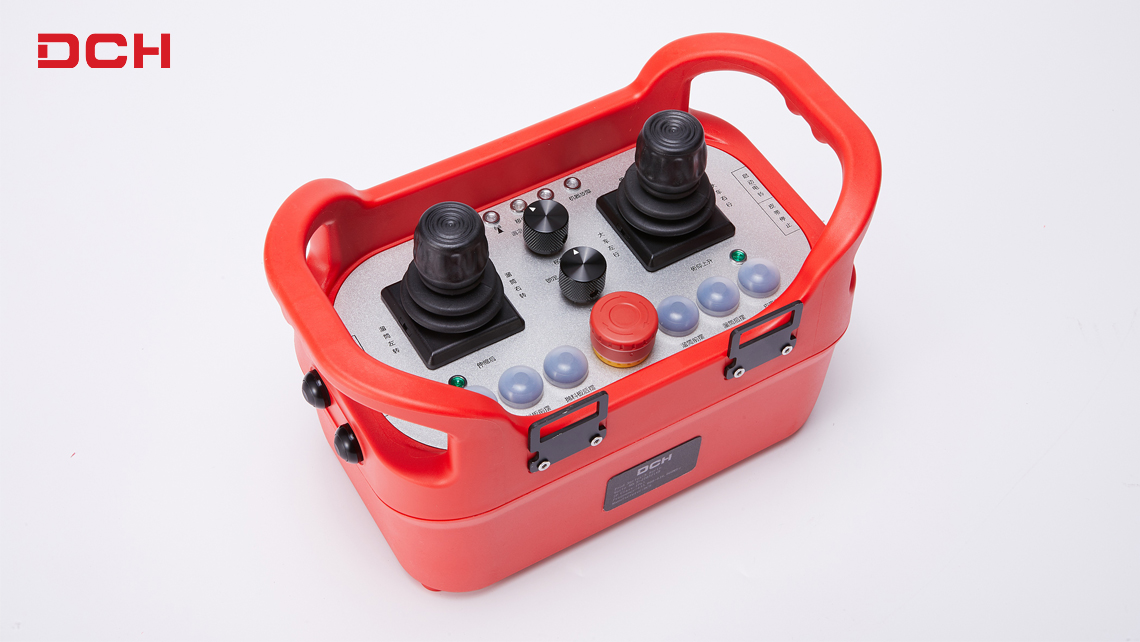

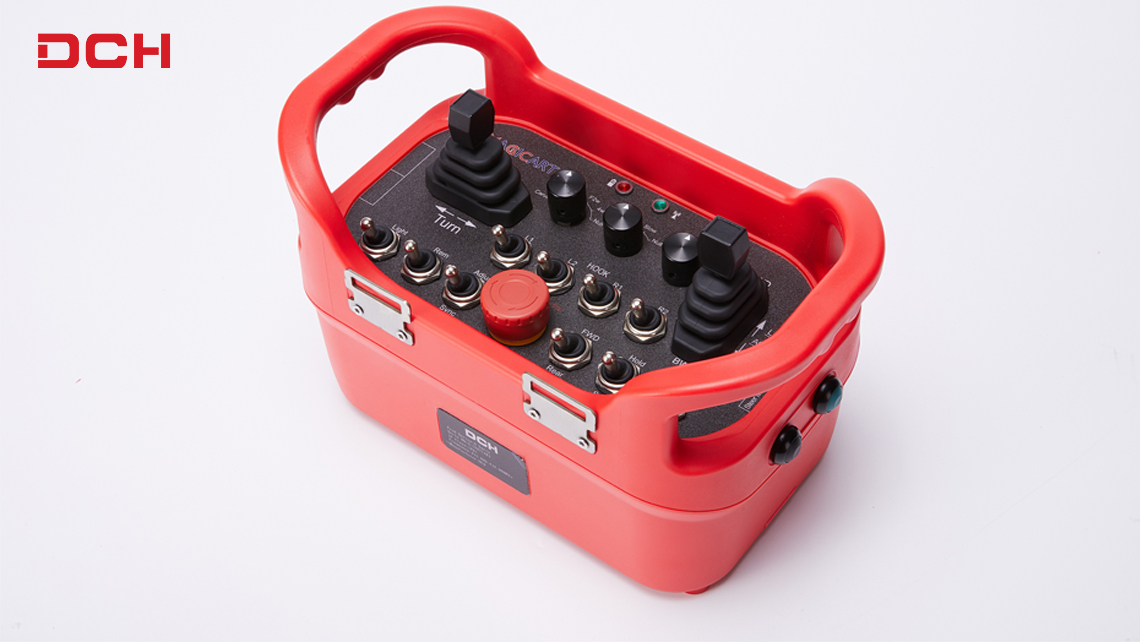

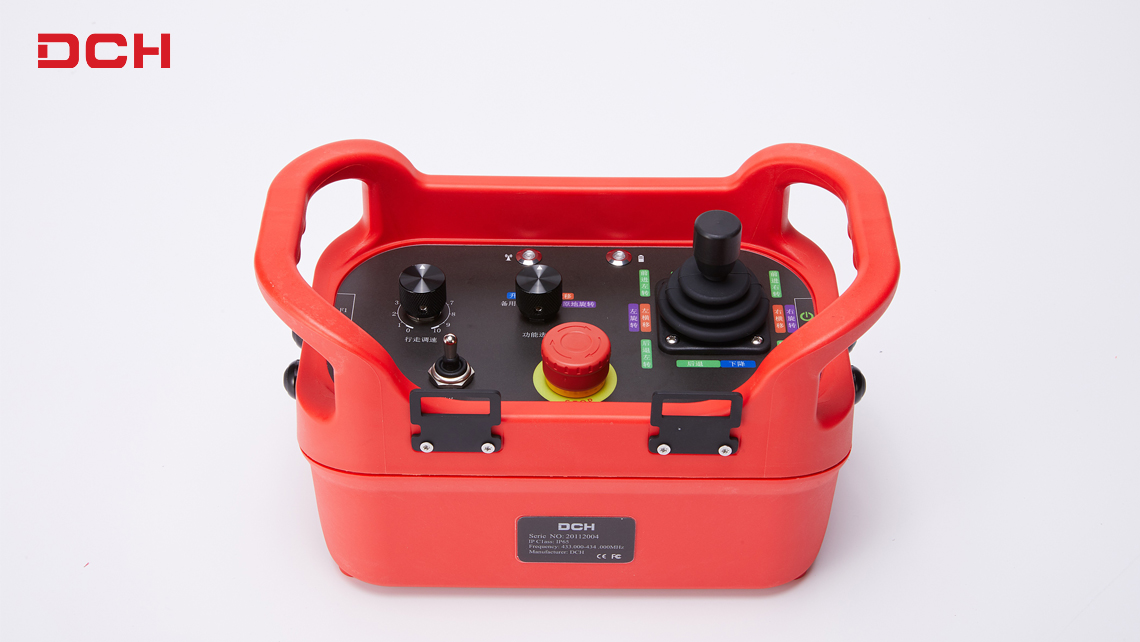

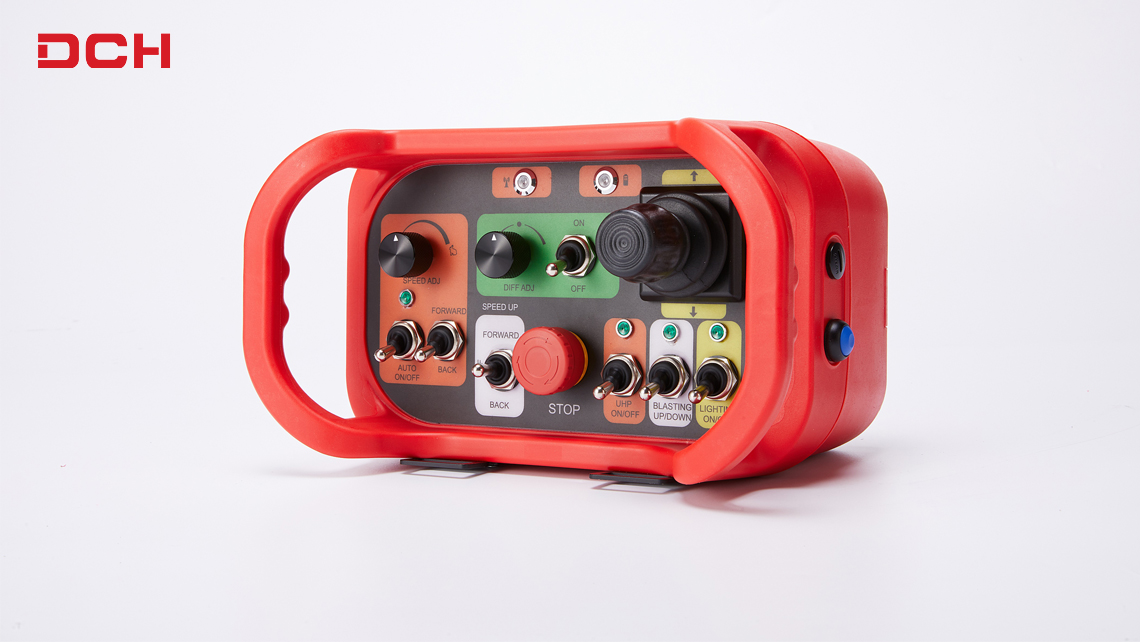

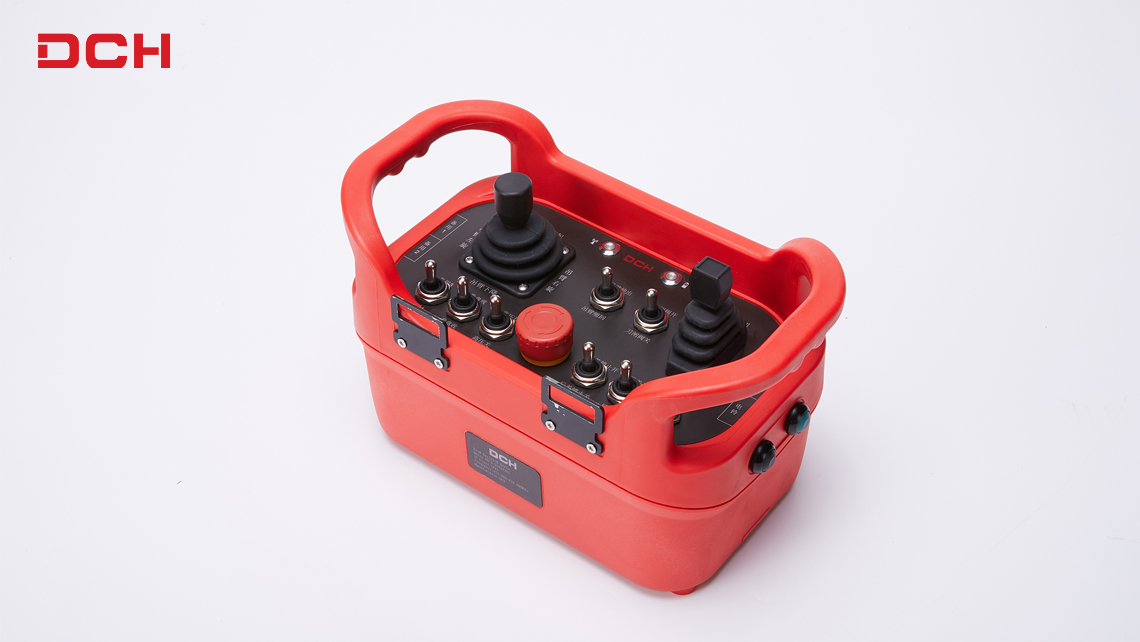

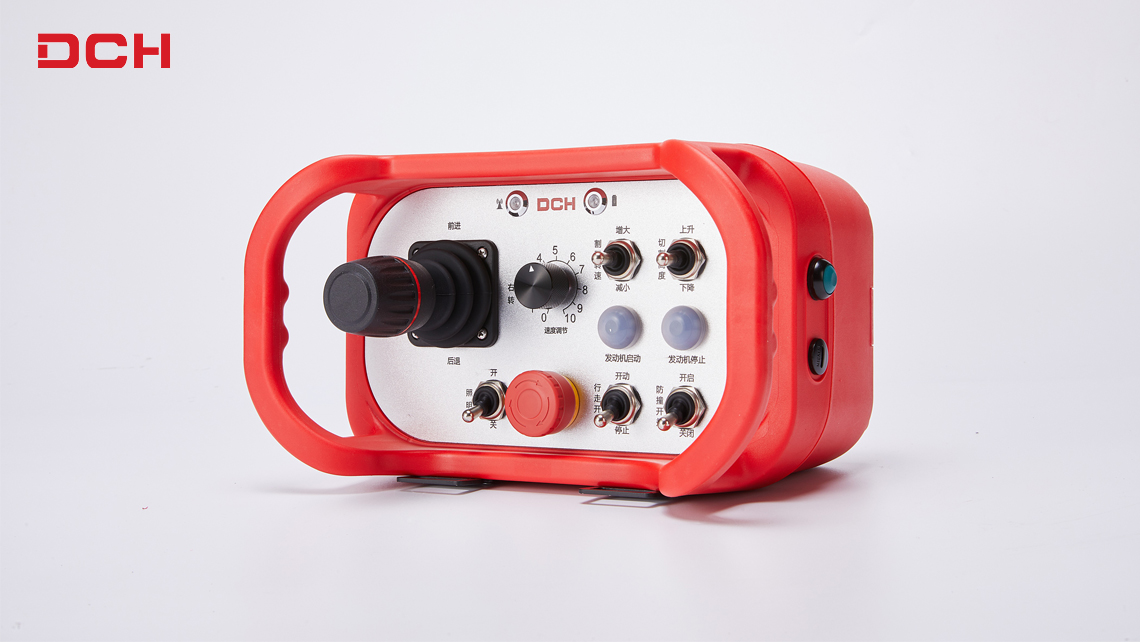

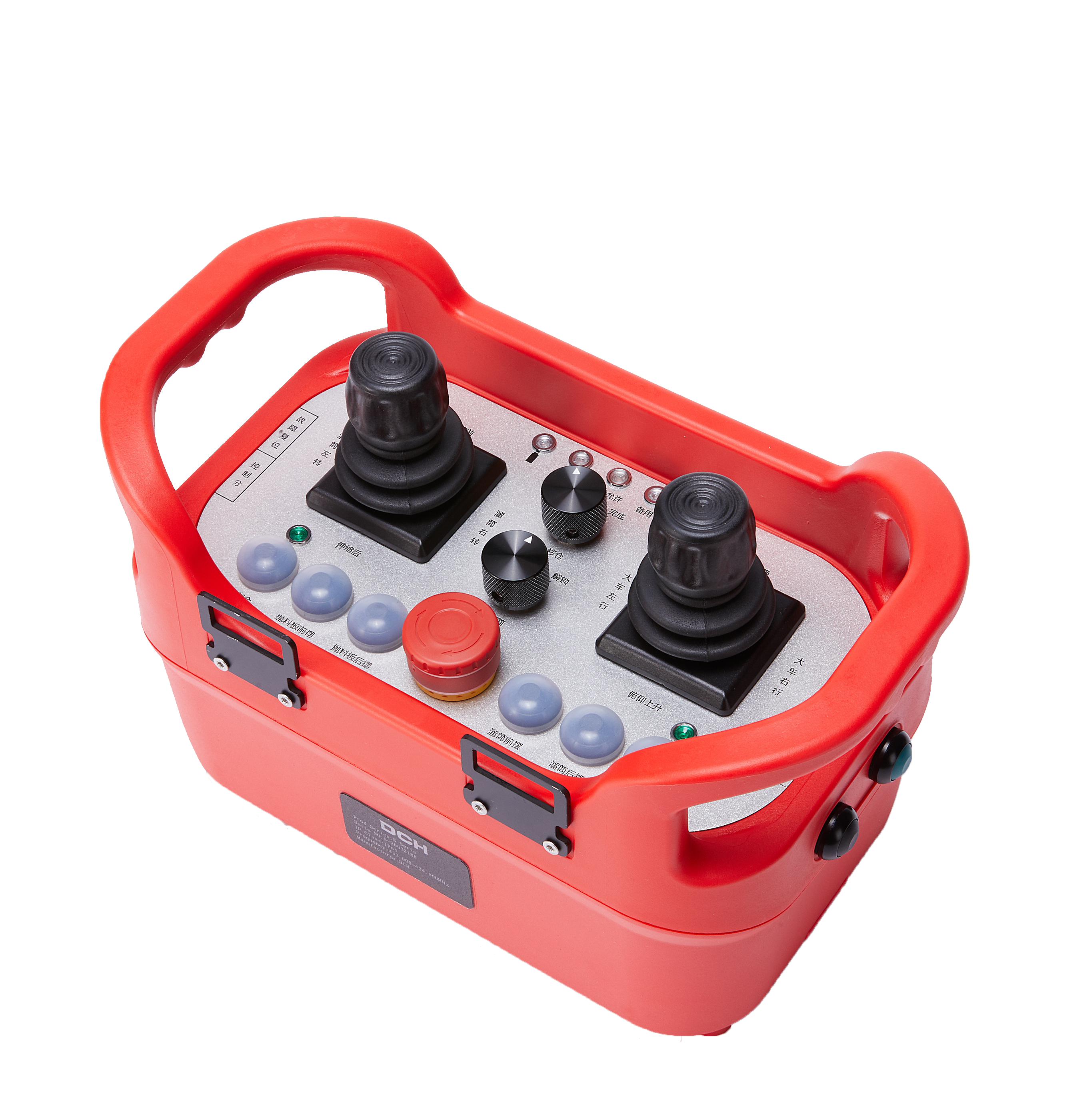

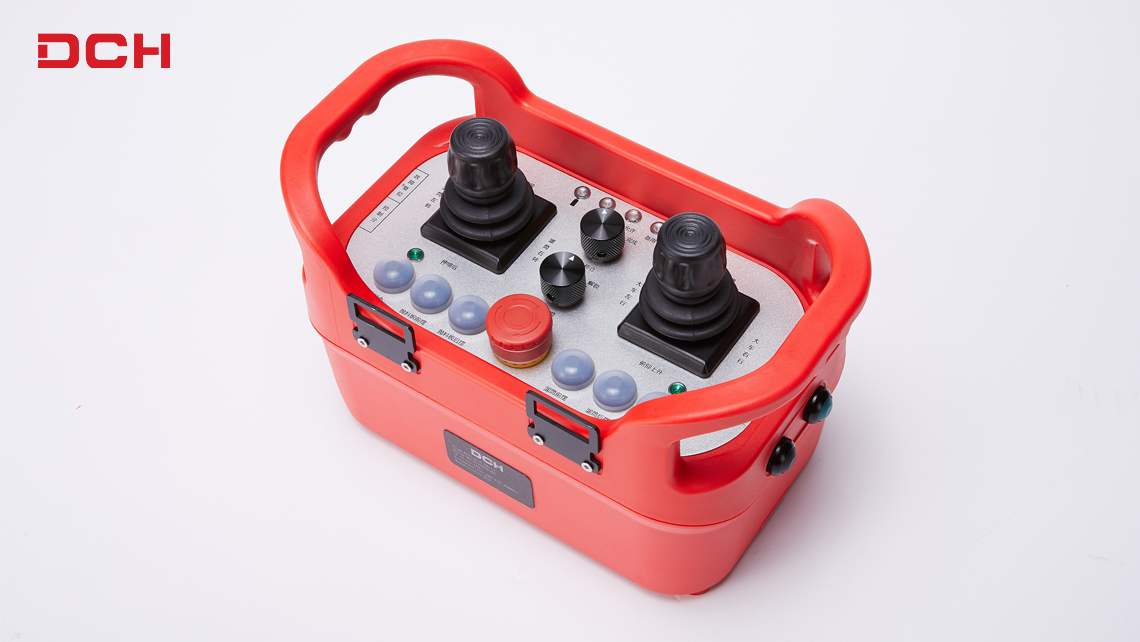

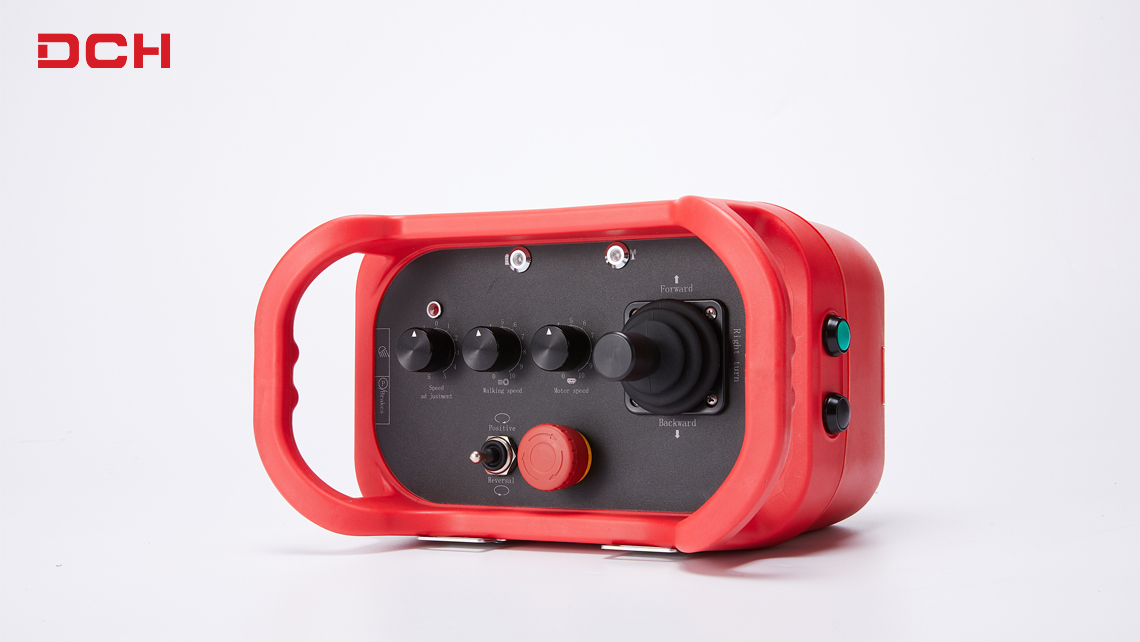

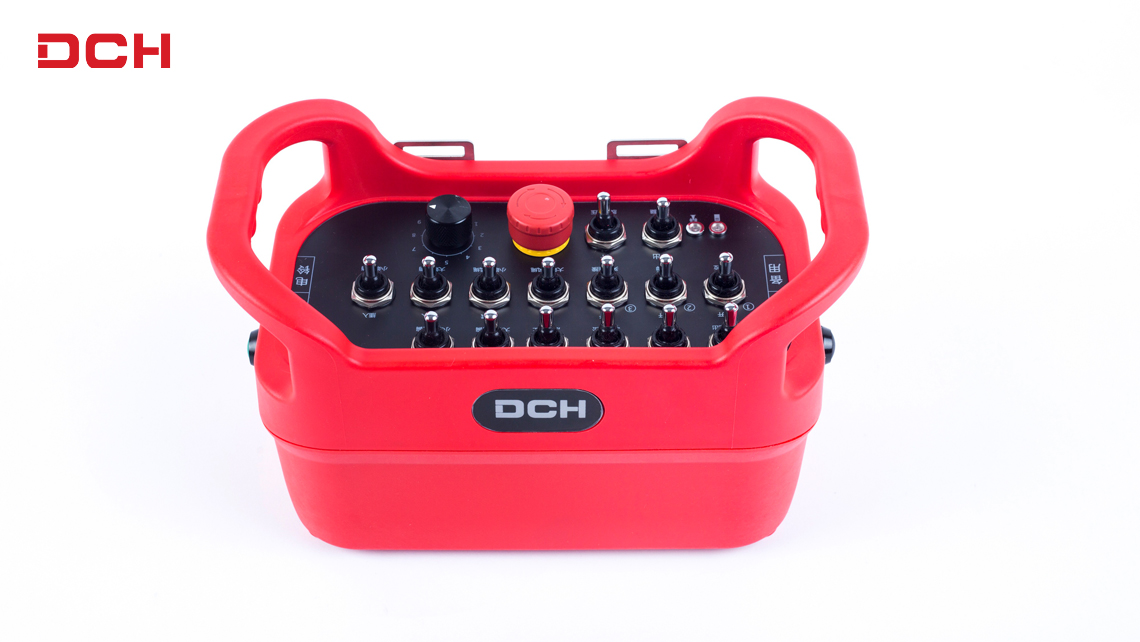

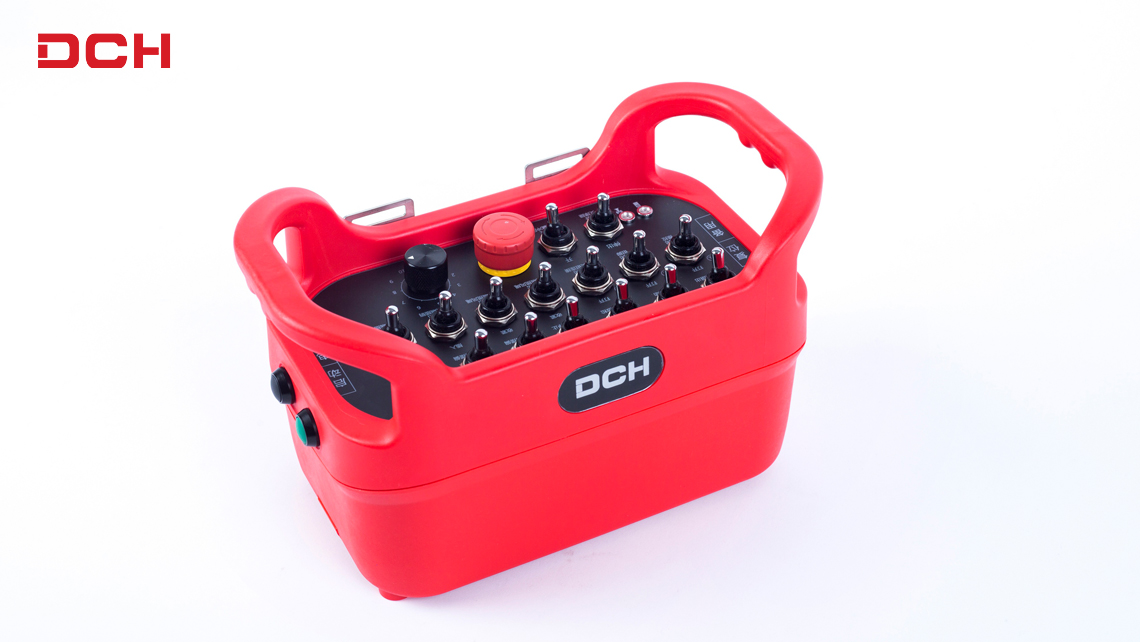

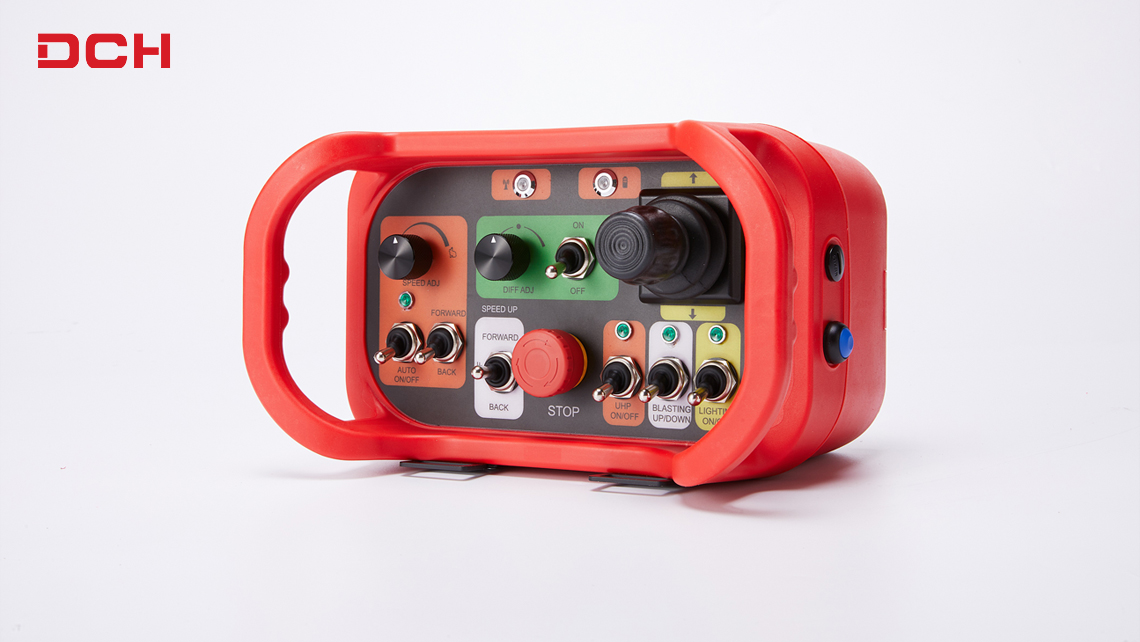

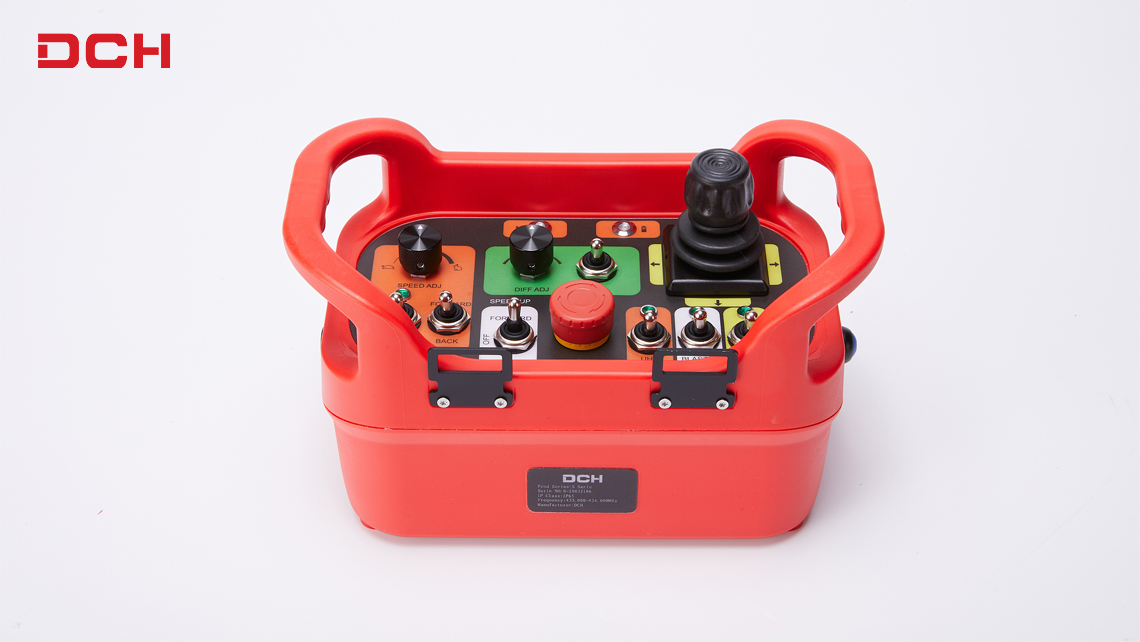

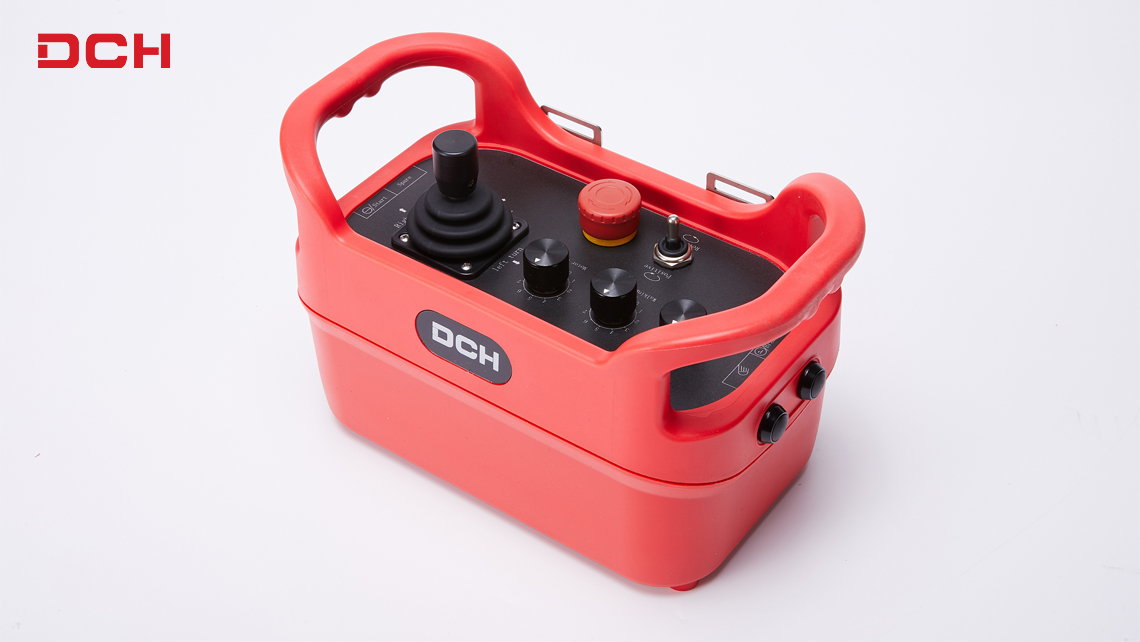

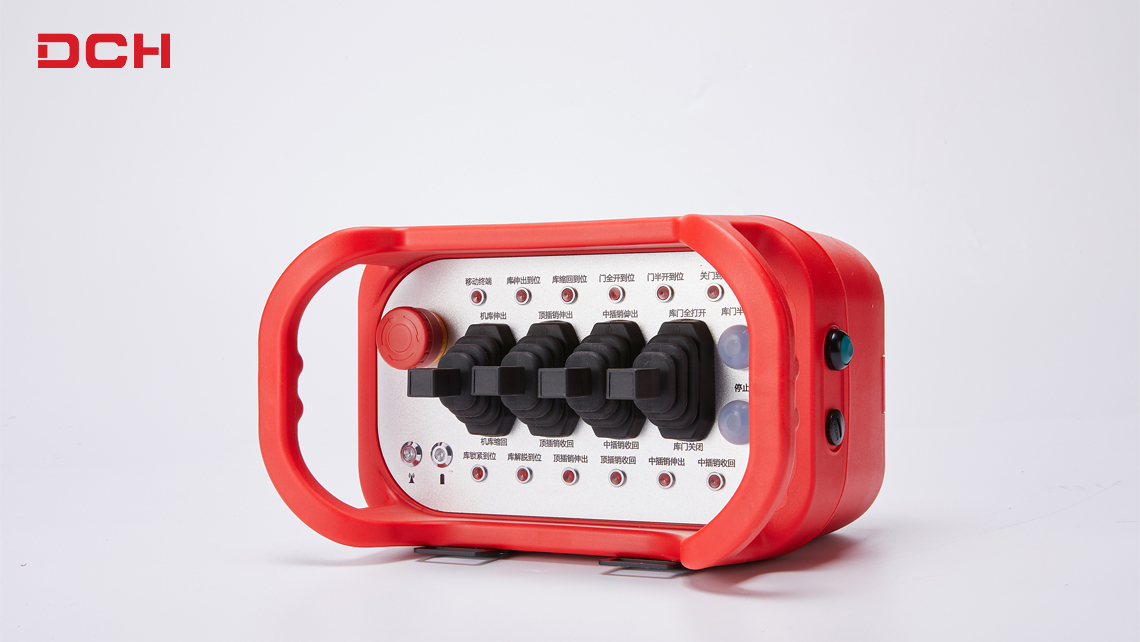

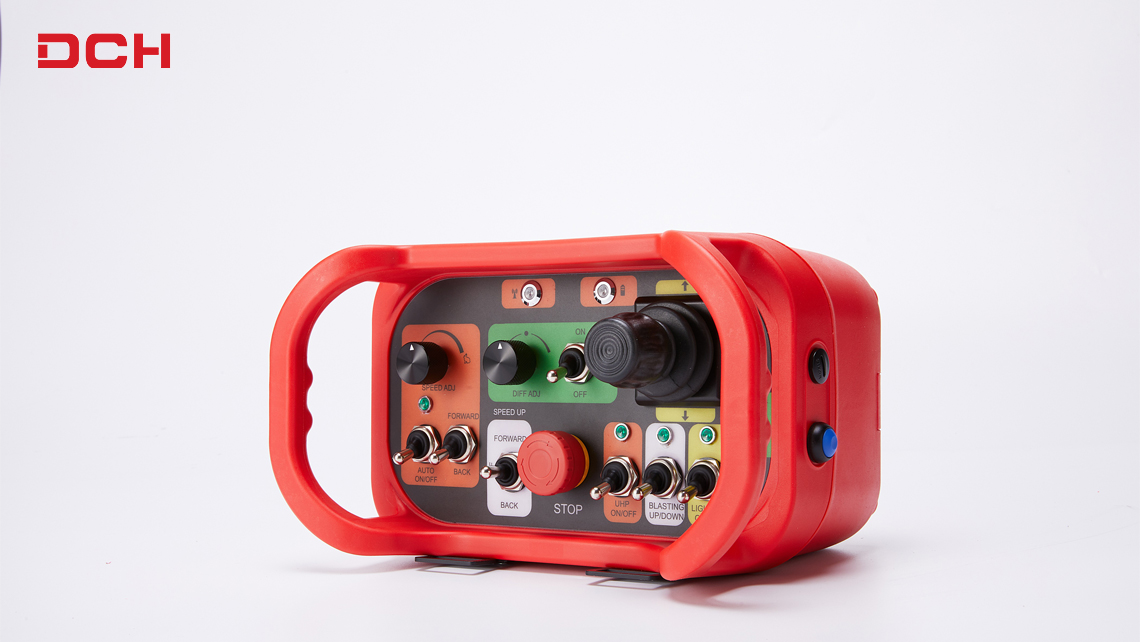

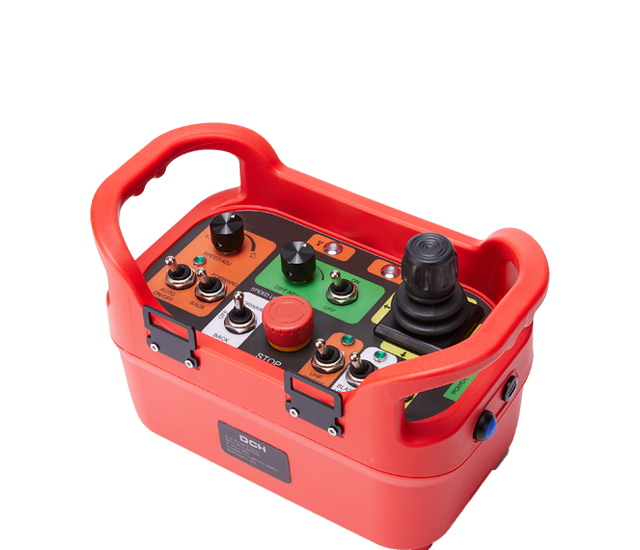

| Model/List | DCH-S2400 | DCH-S2401 | DCH-S2402 | DCH-S2403 | DCH-S2404 | DCH-S2405 | DCH-S2406 |

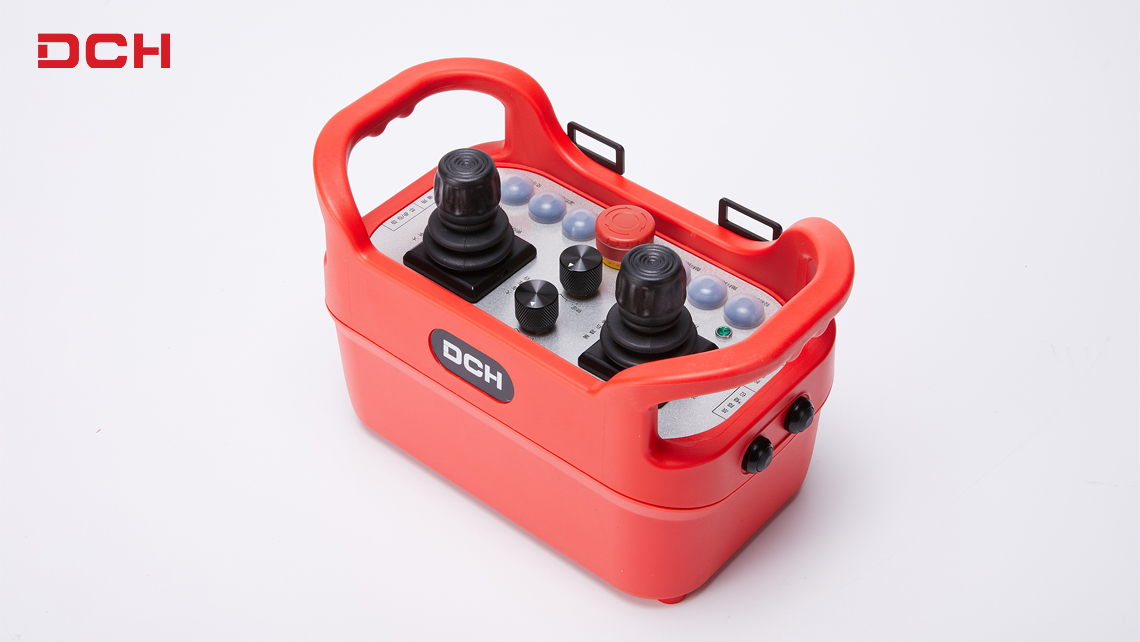

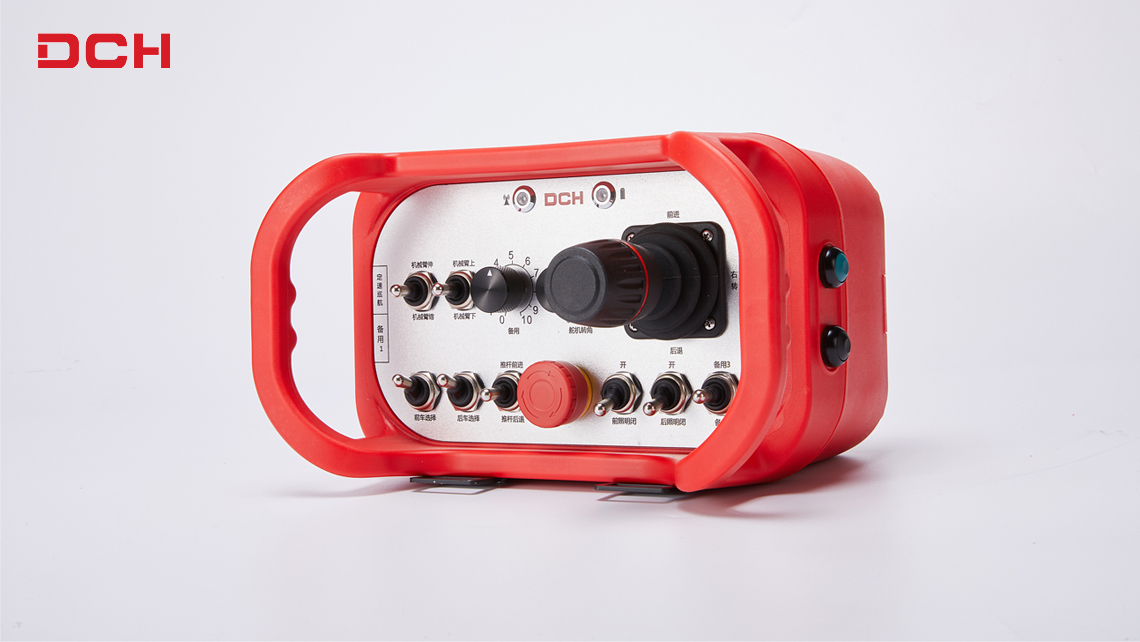

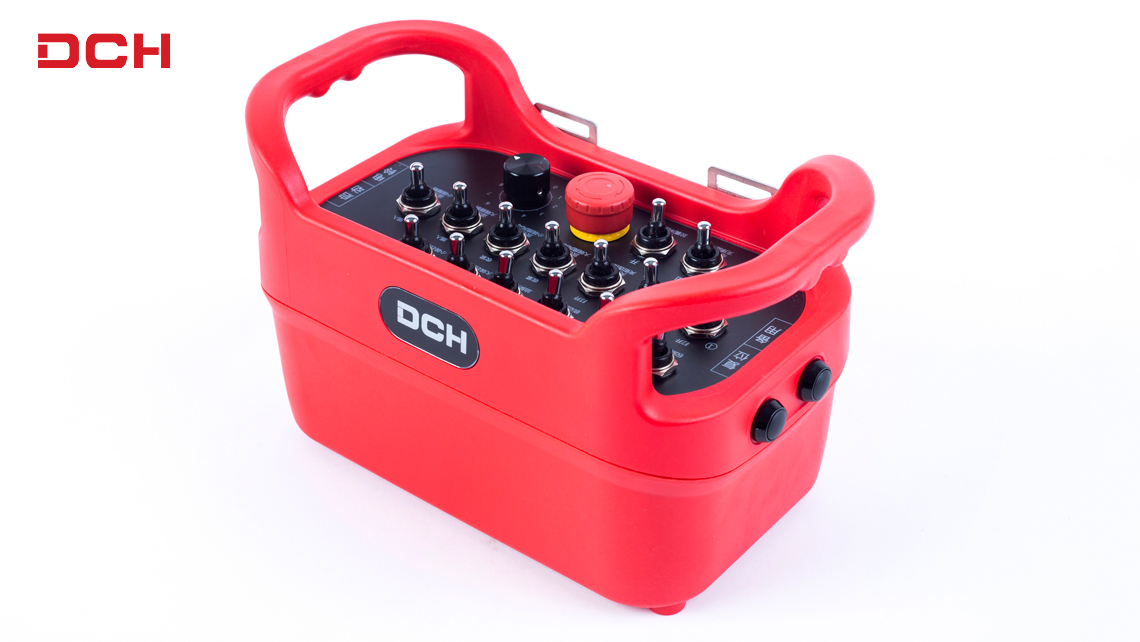

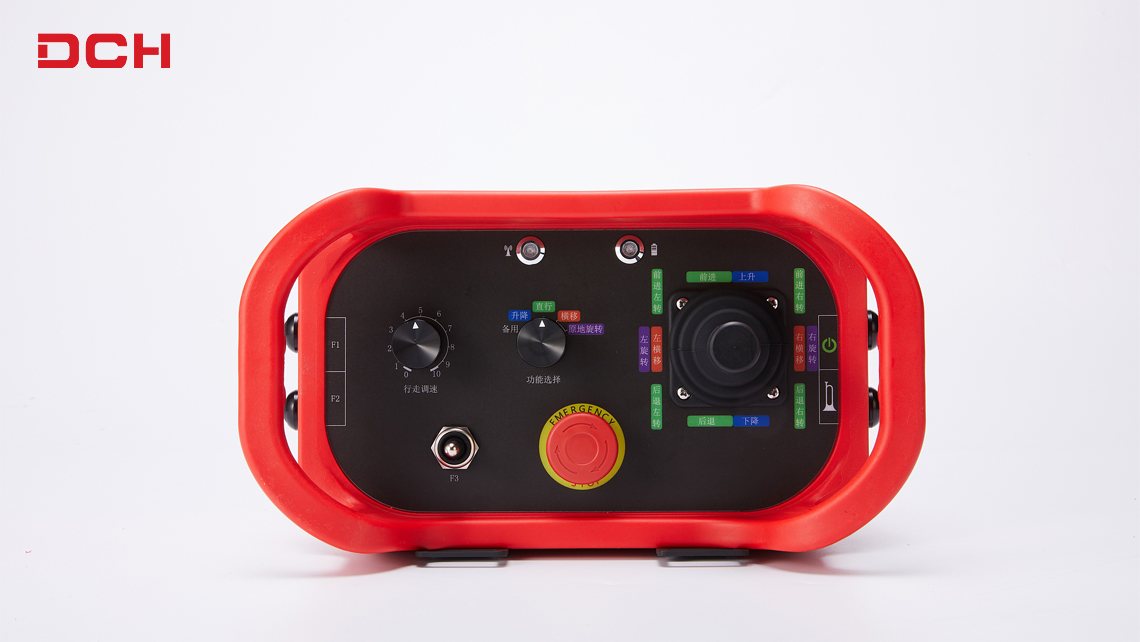

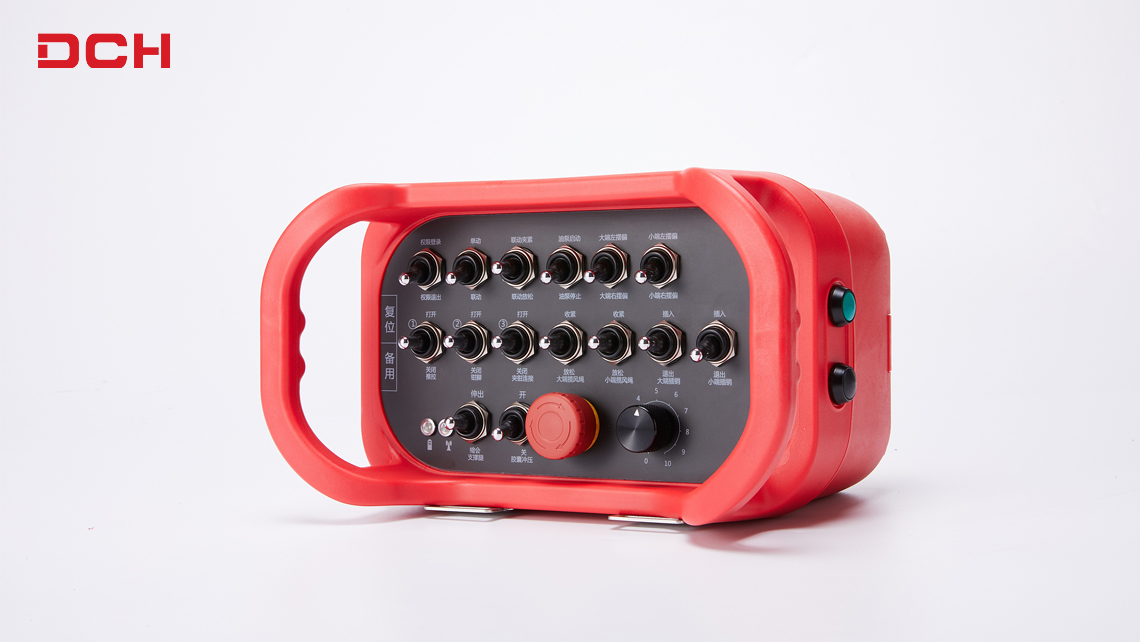

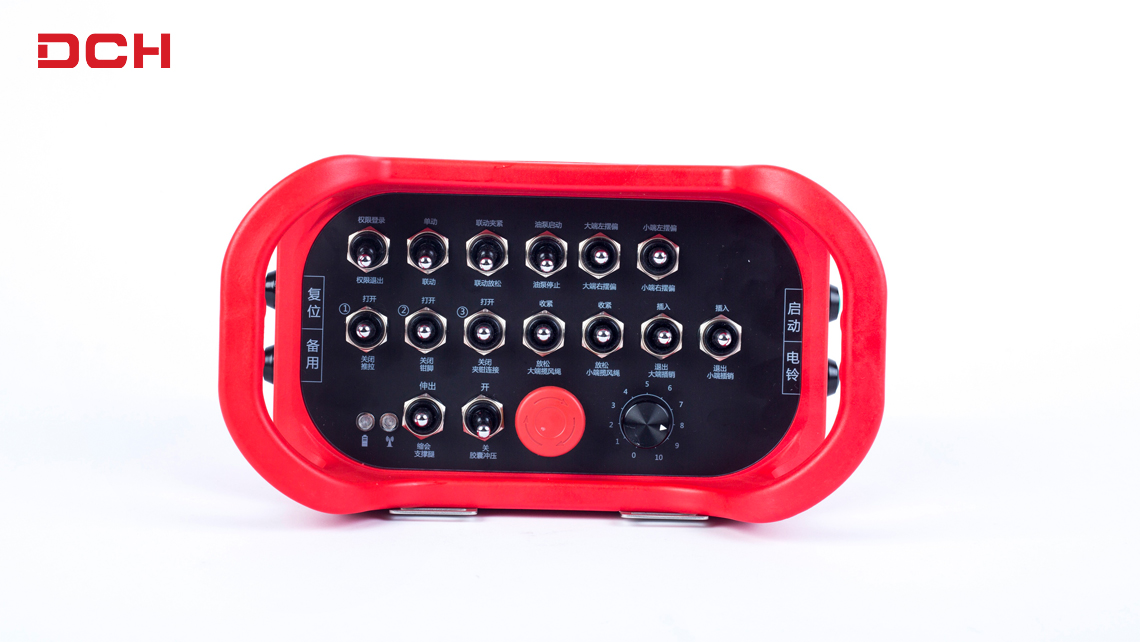

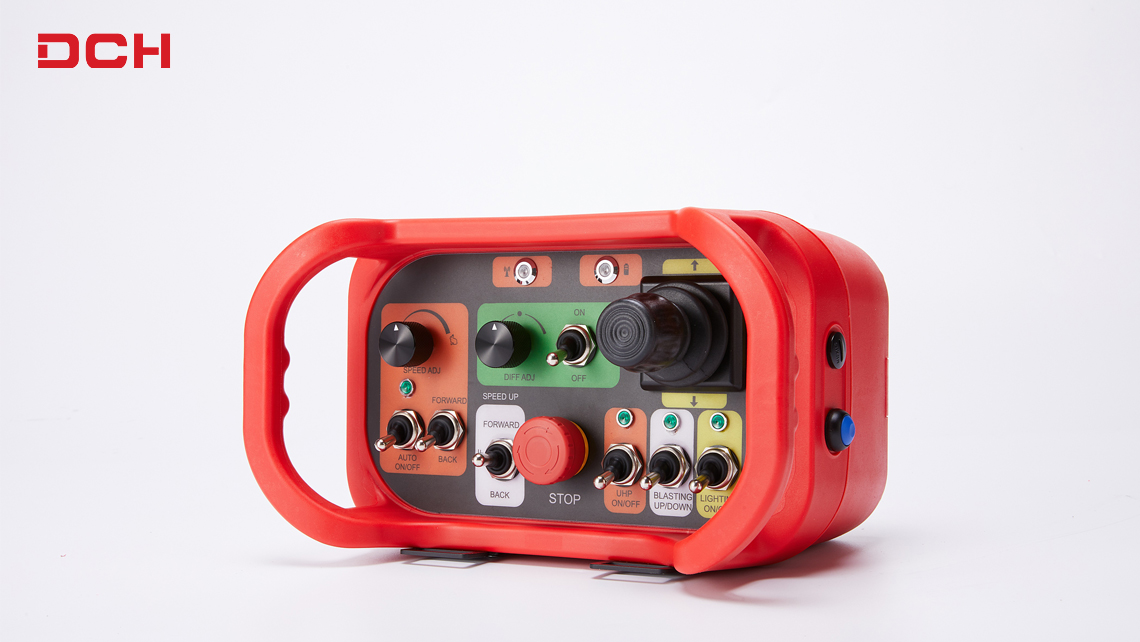

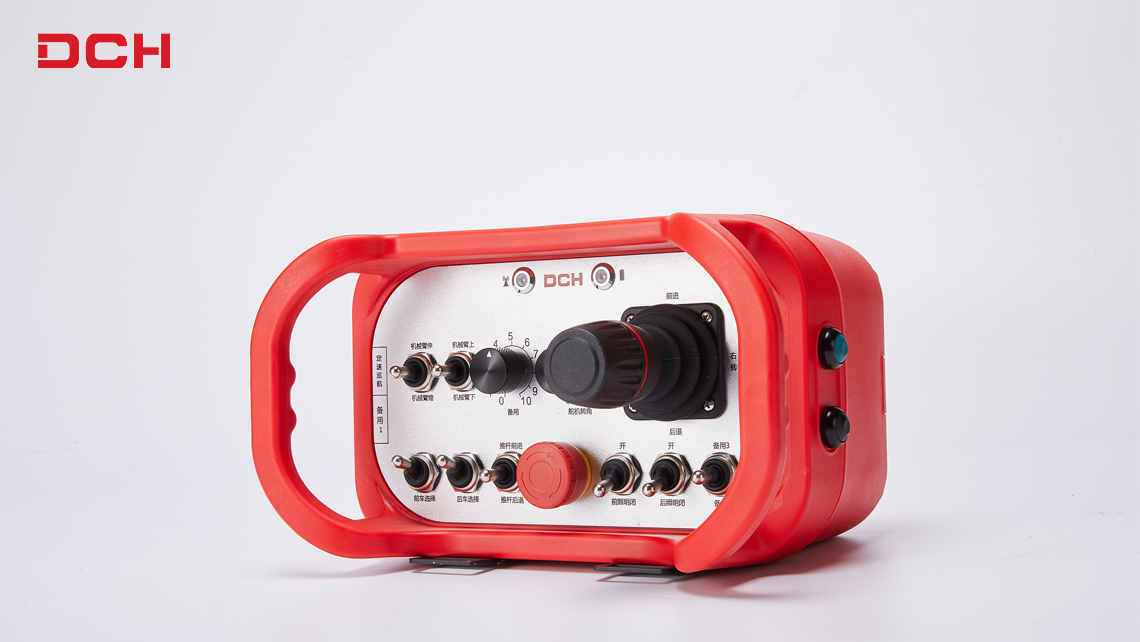

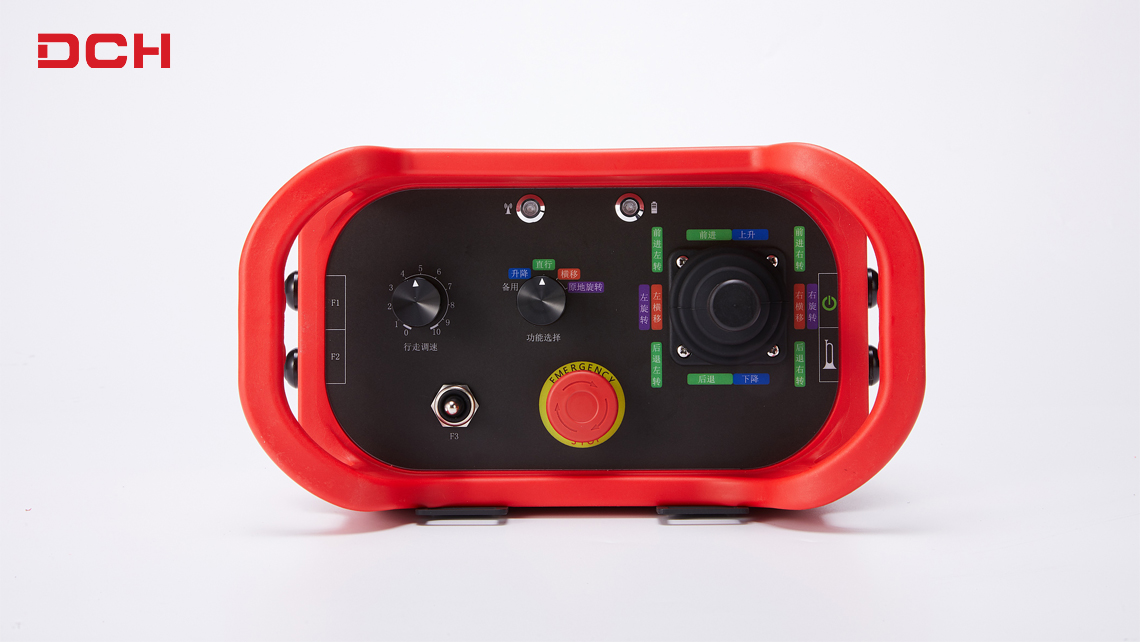

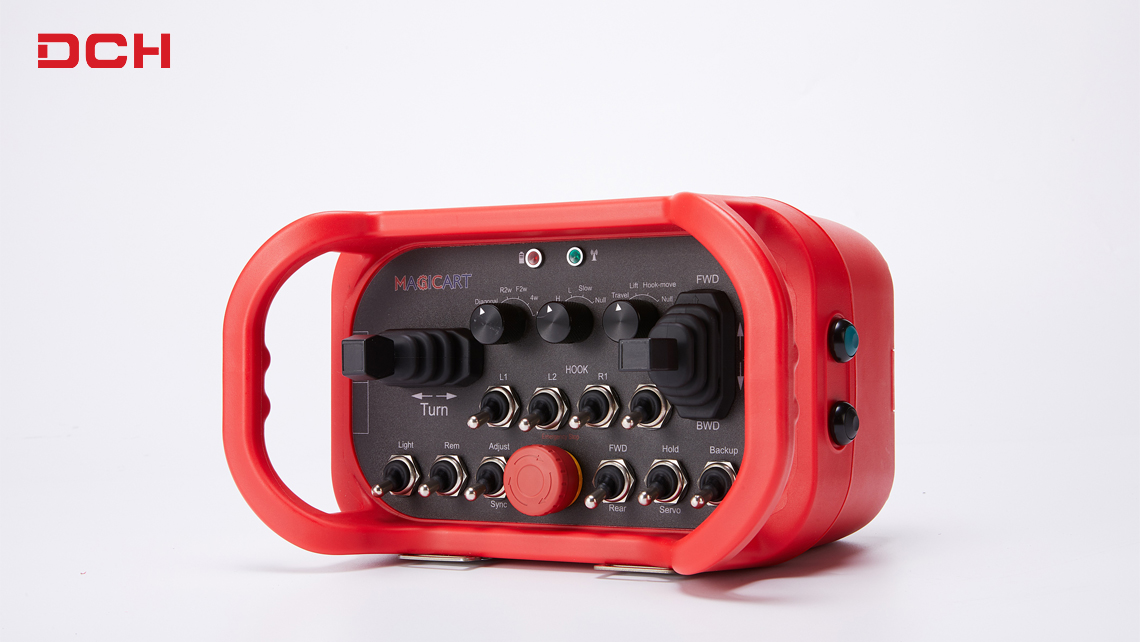

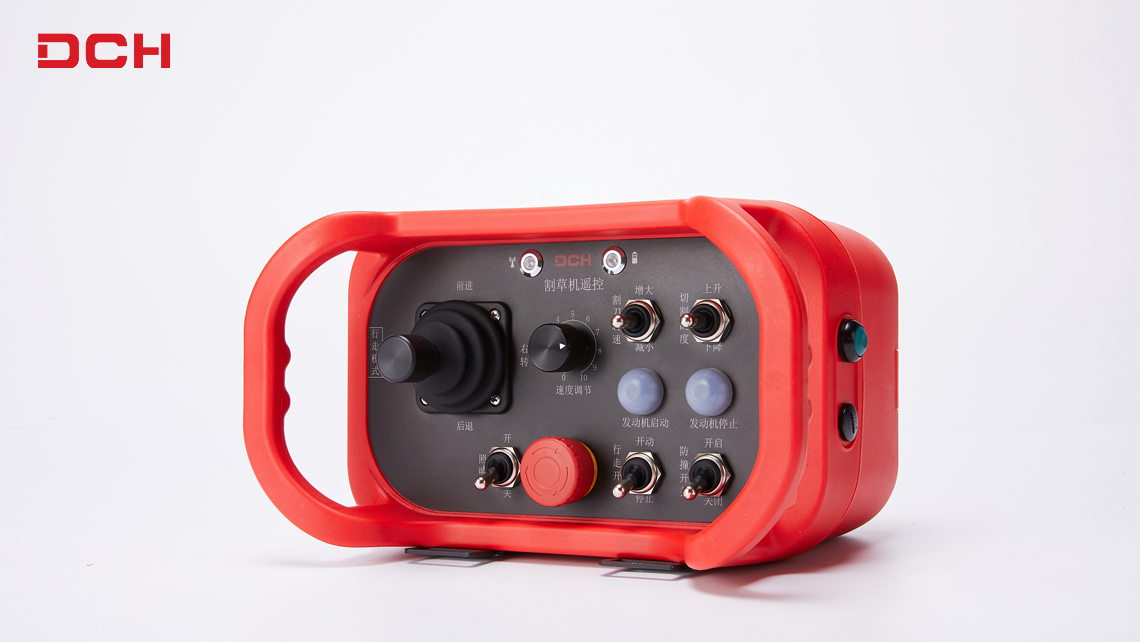

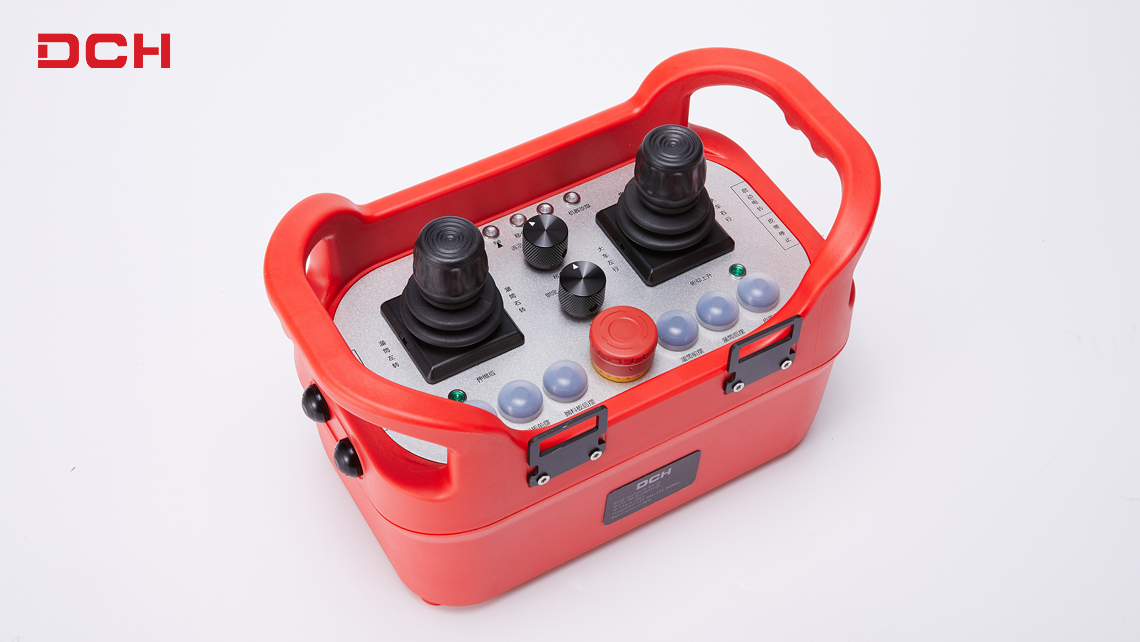

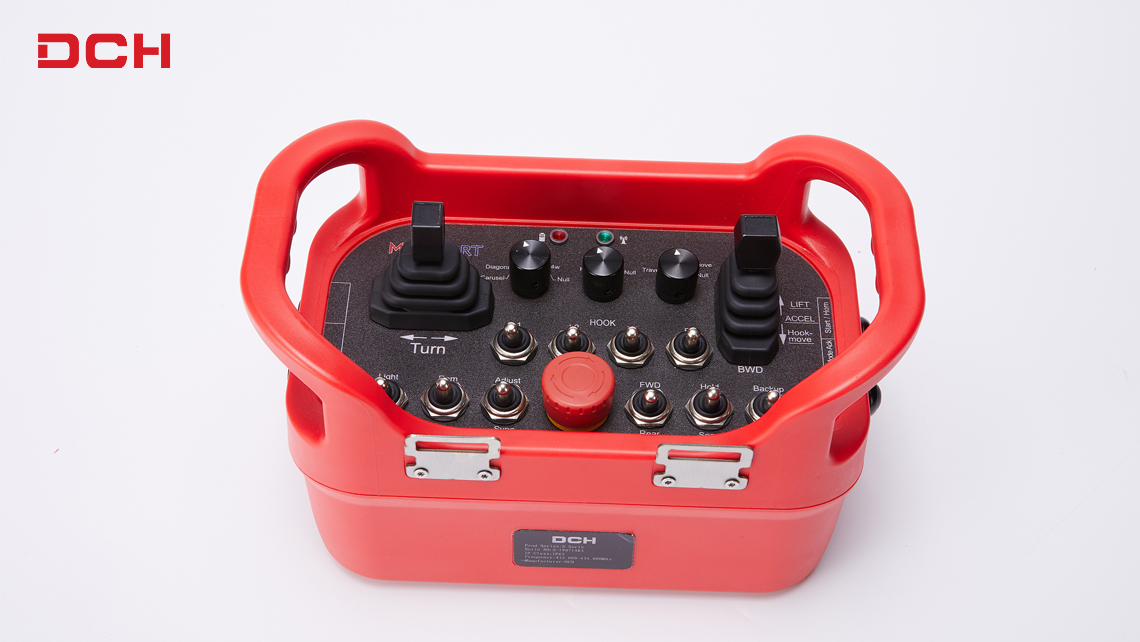

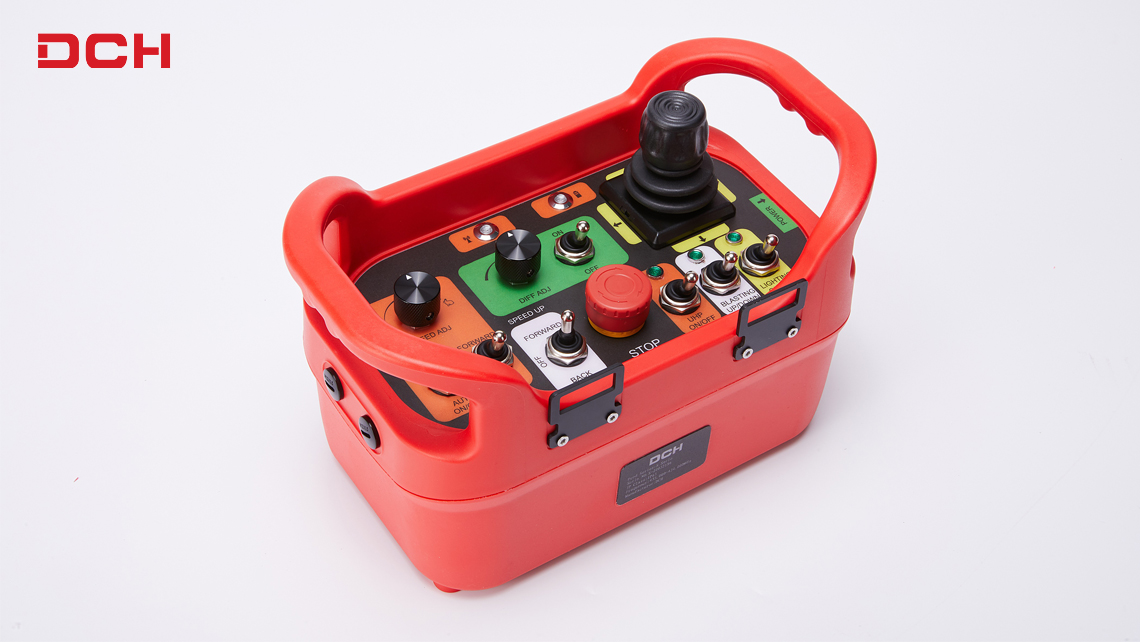

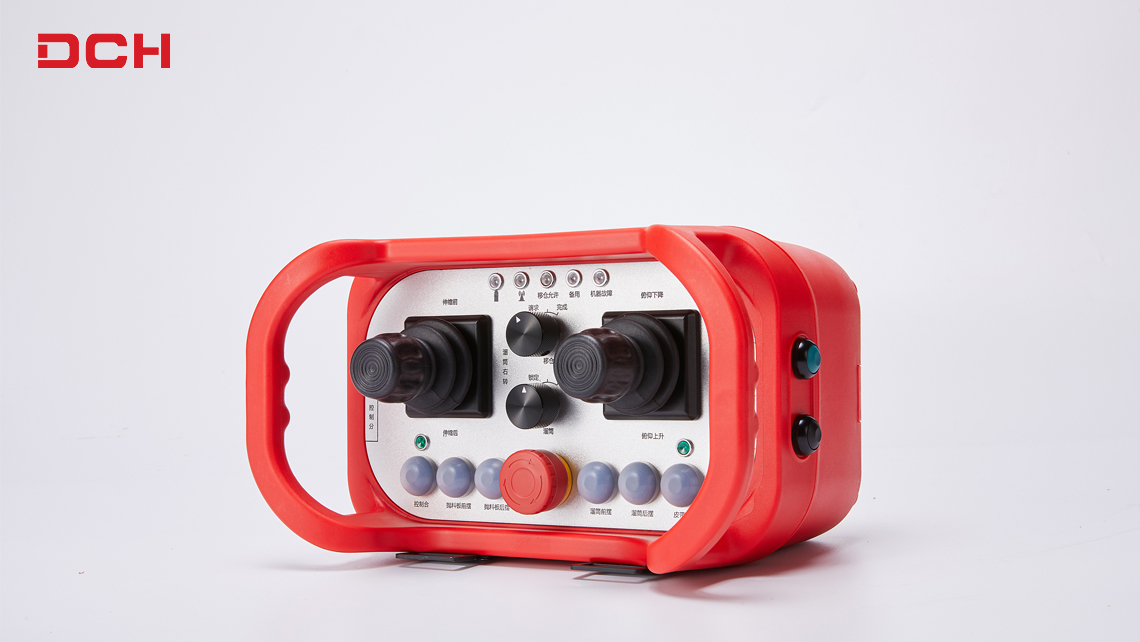

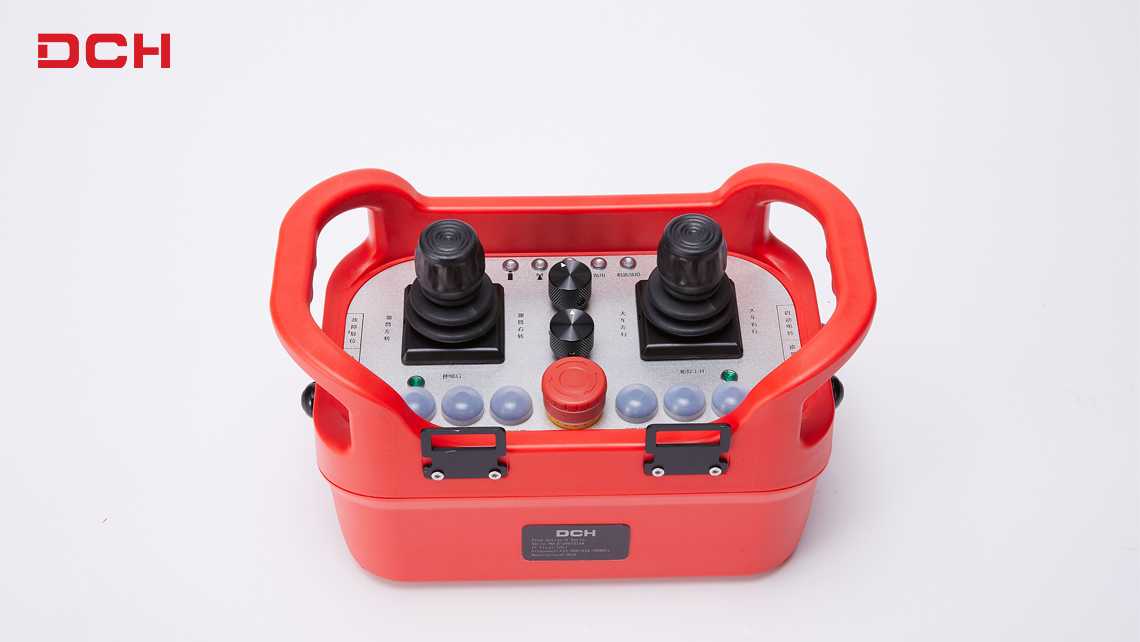

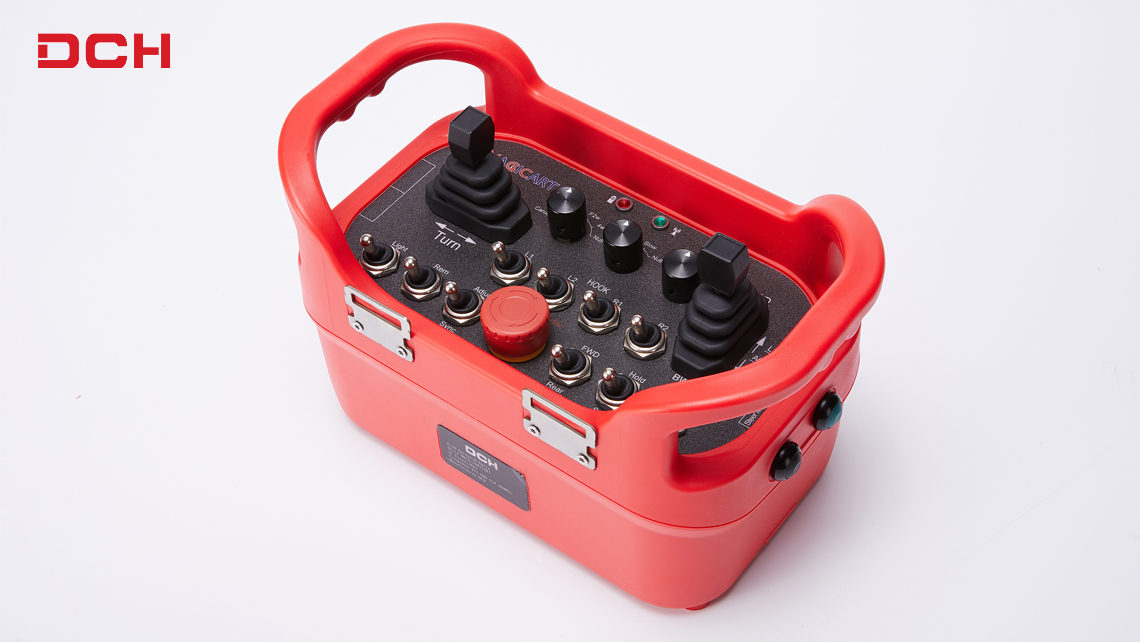

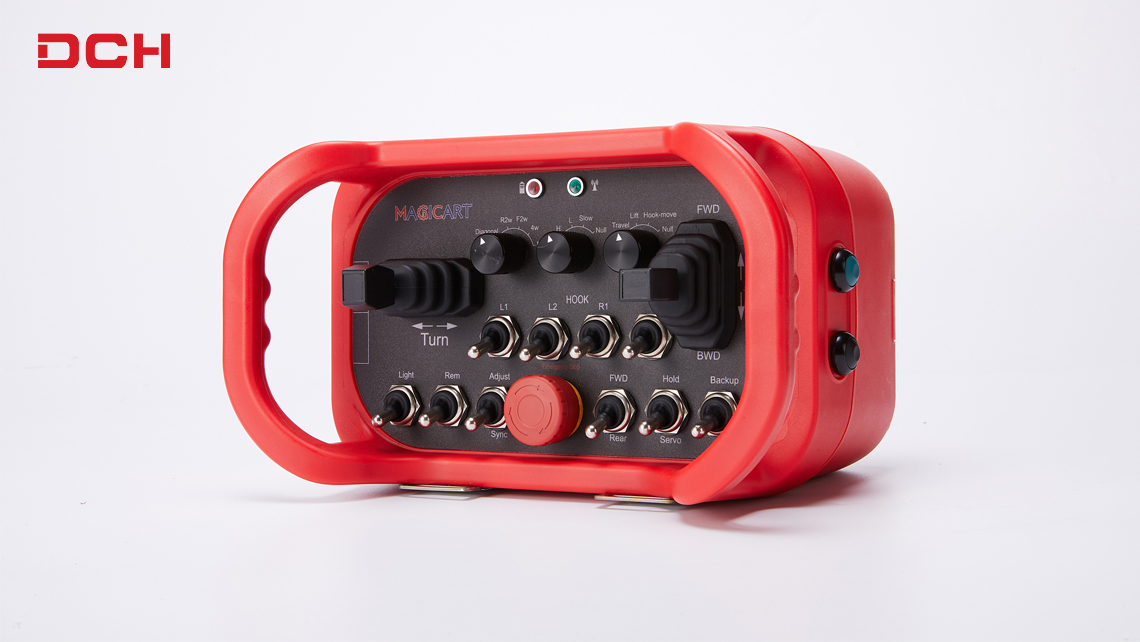

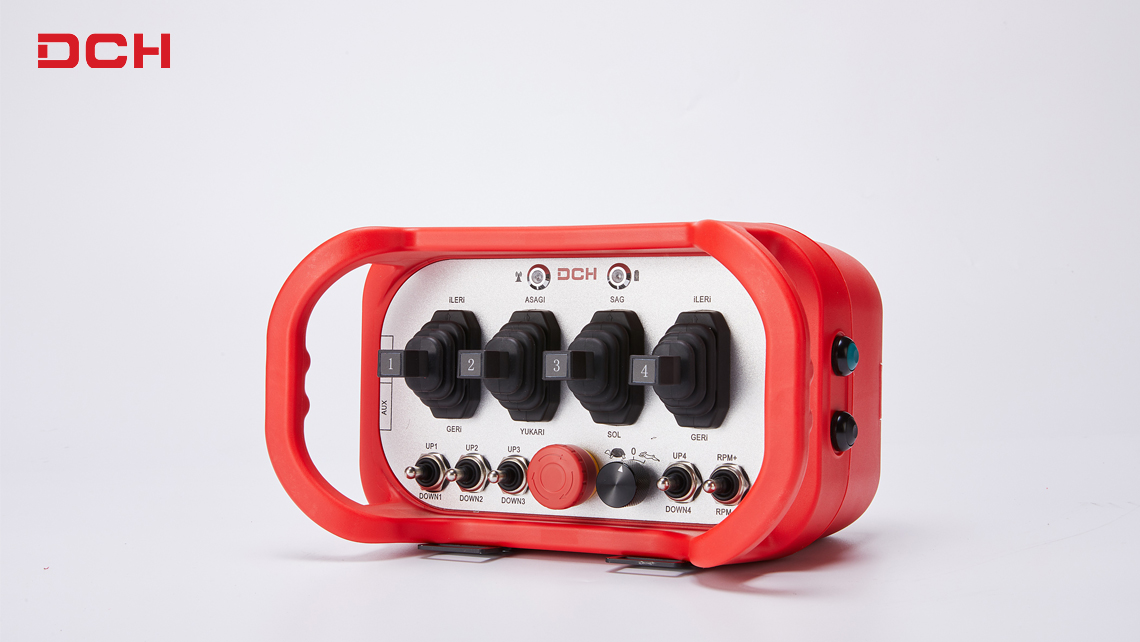

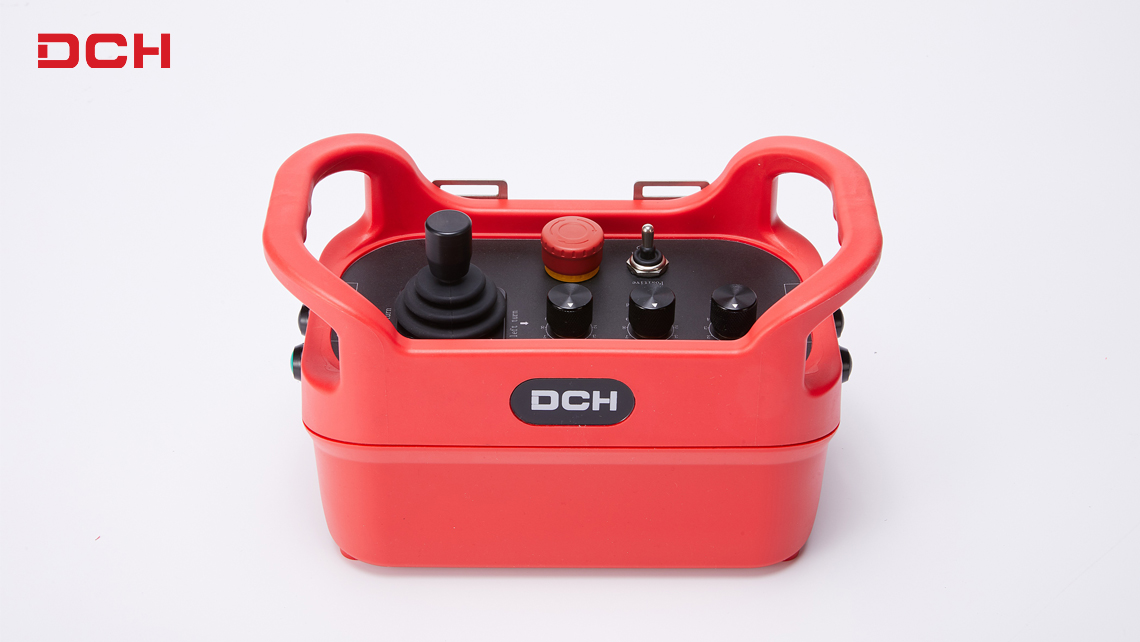

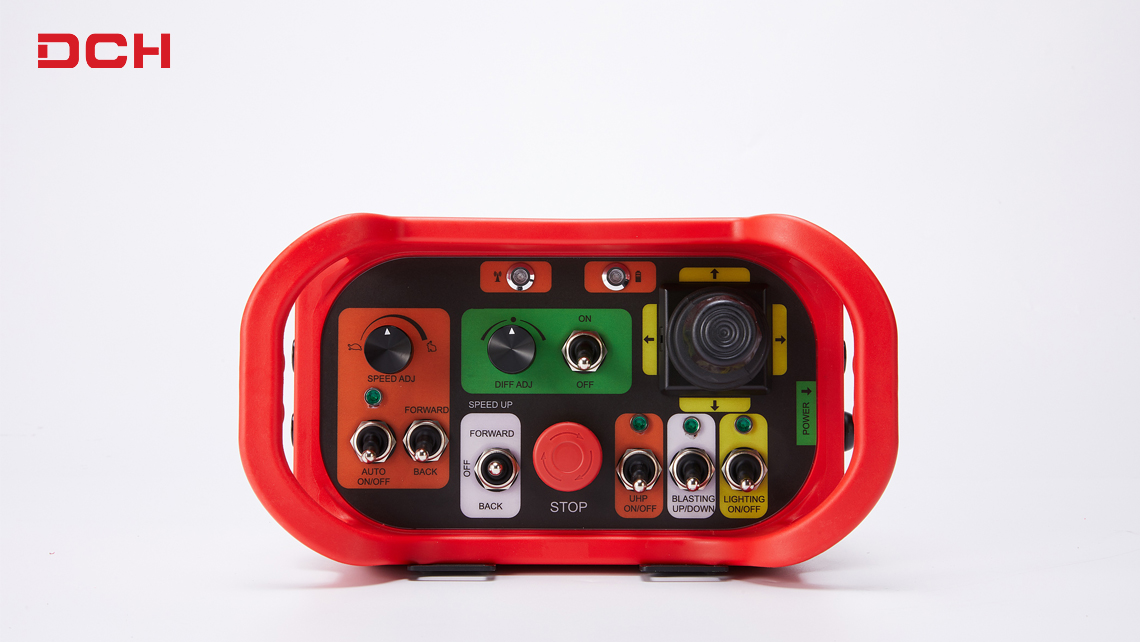

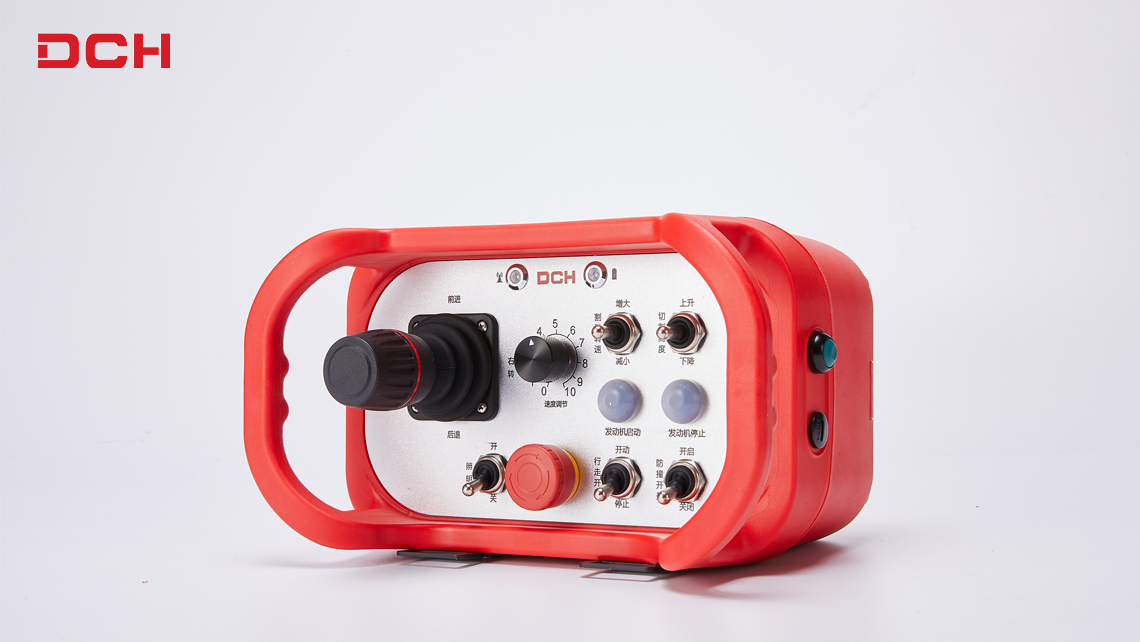

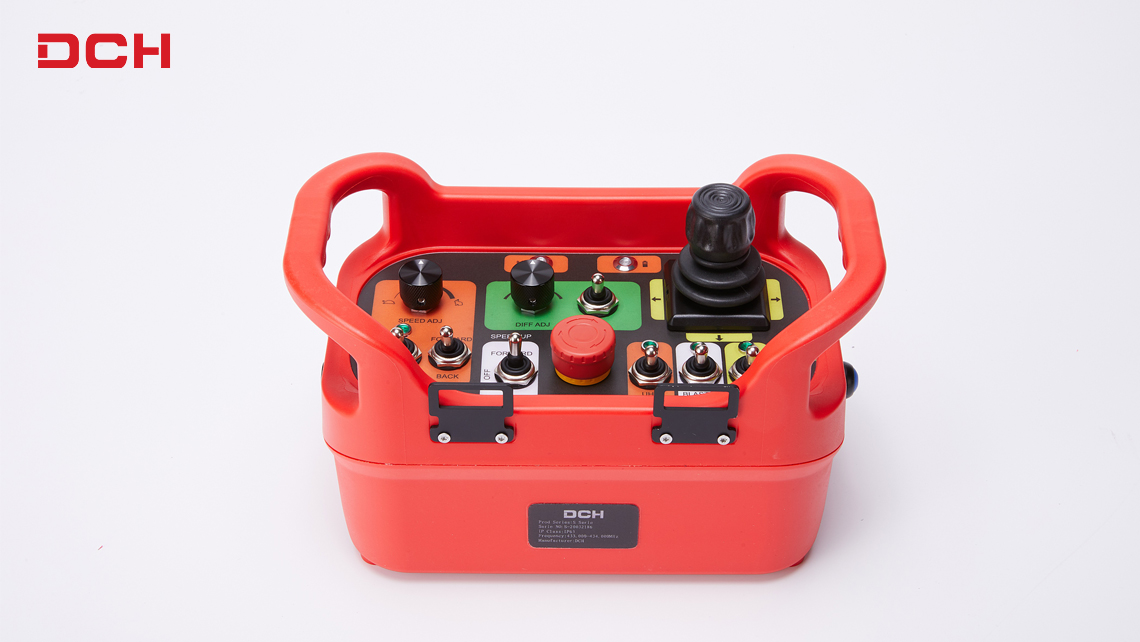

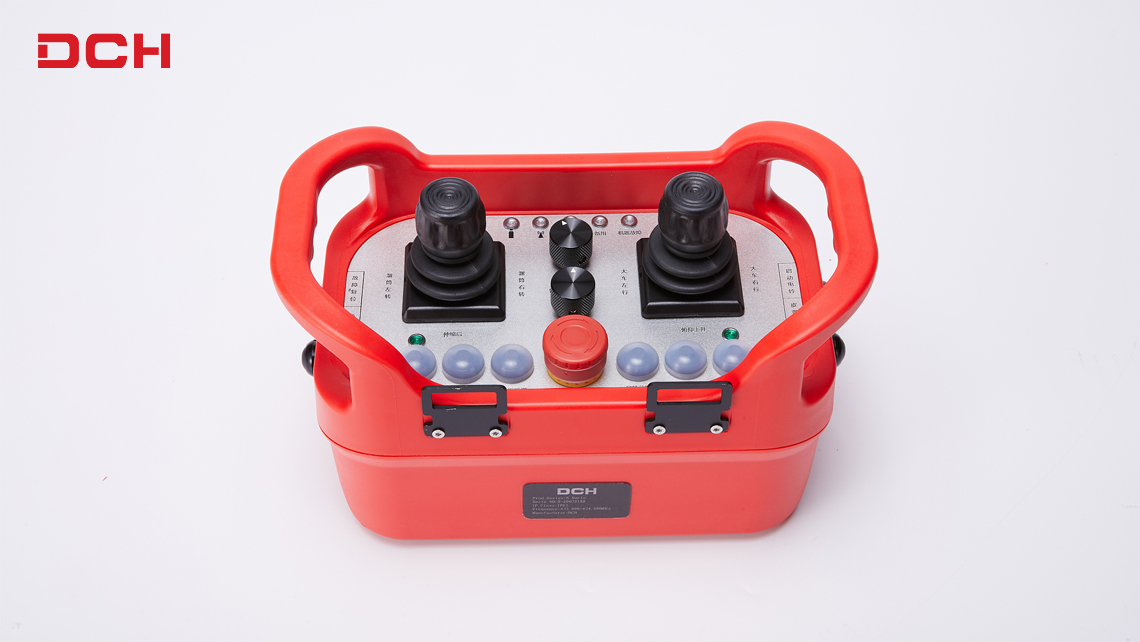

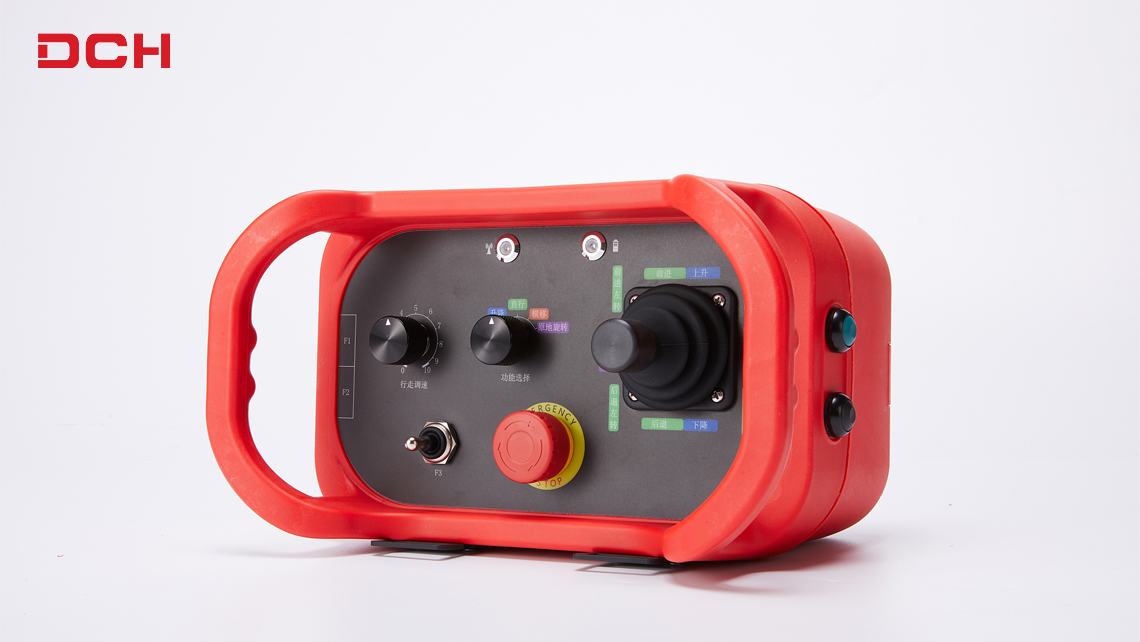

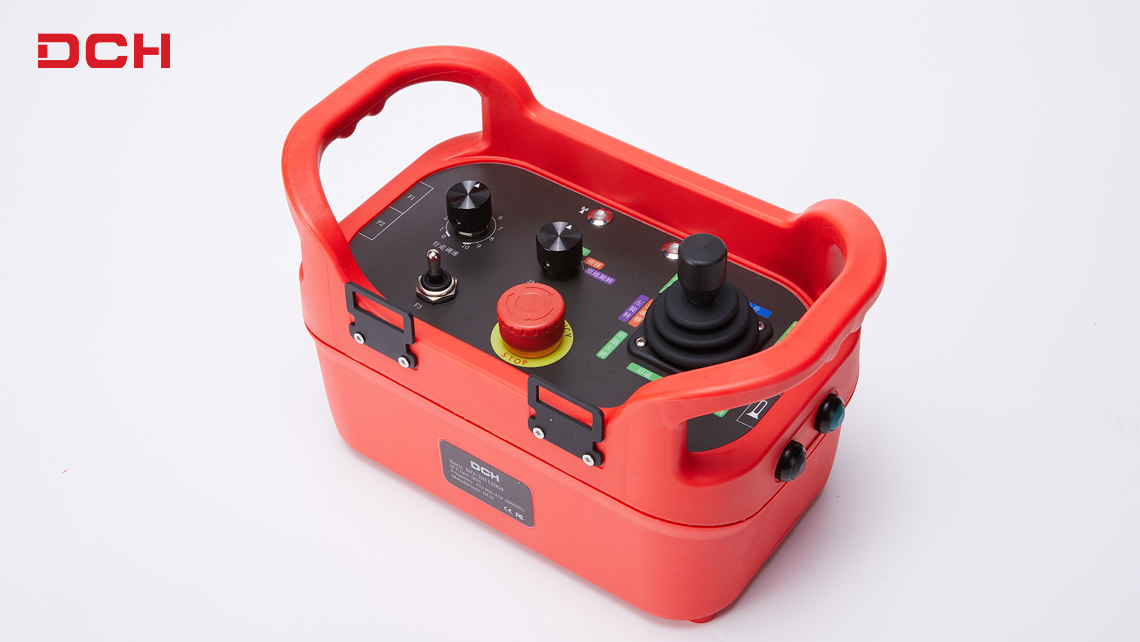

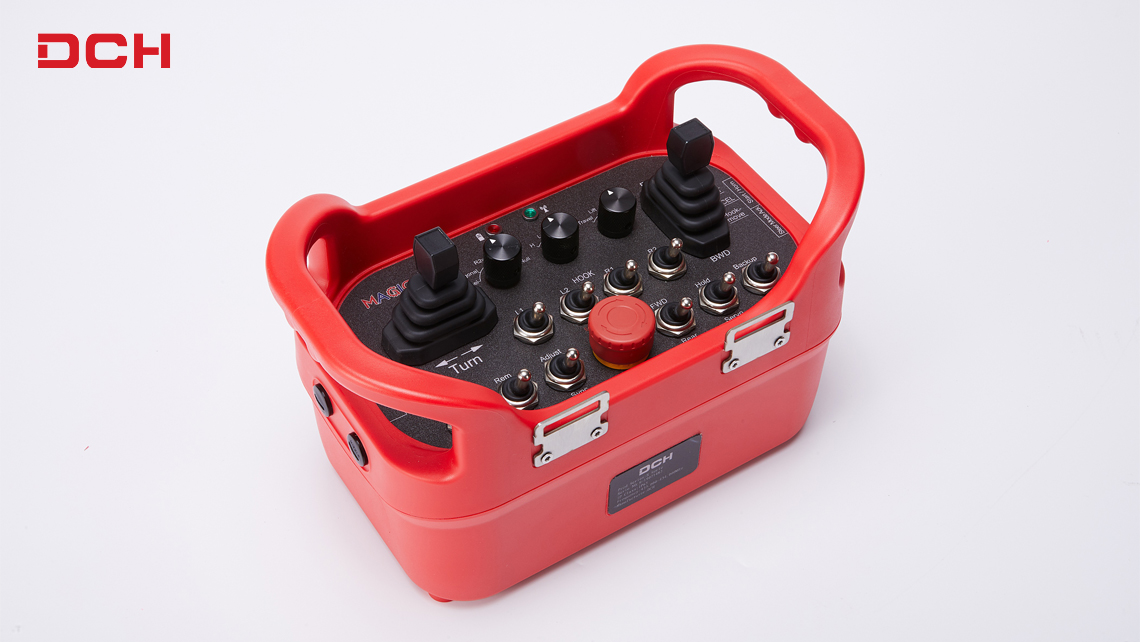

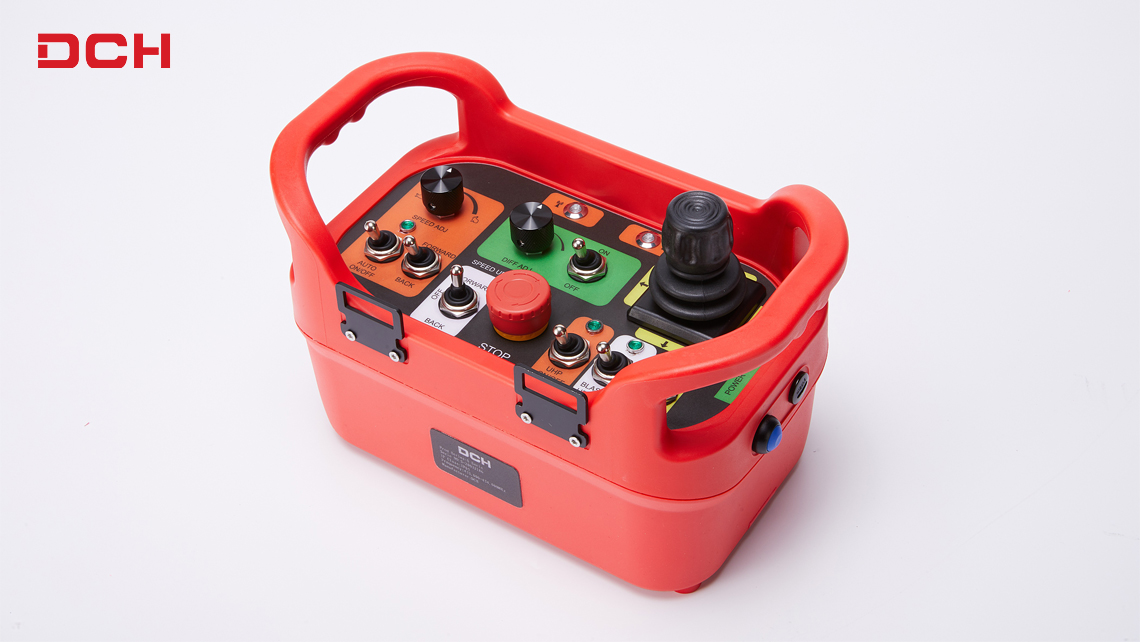

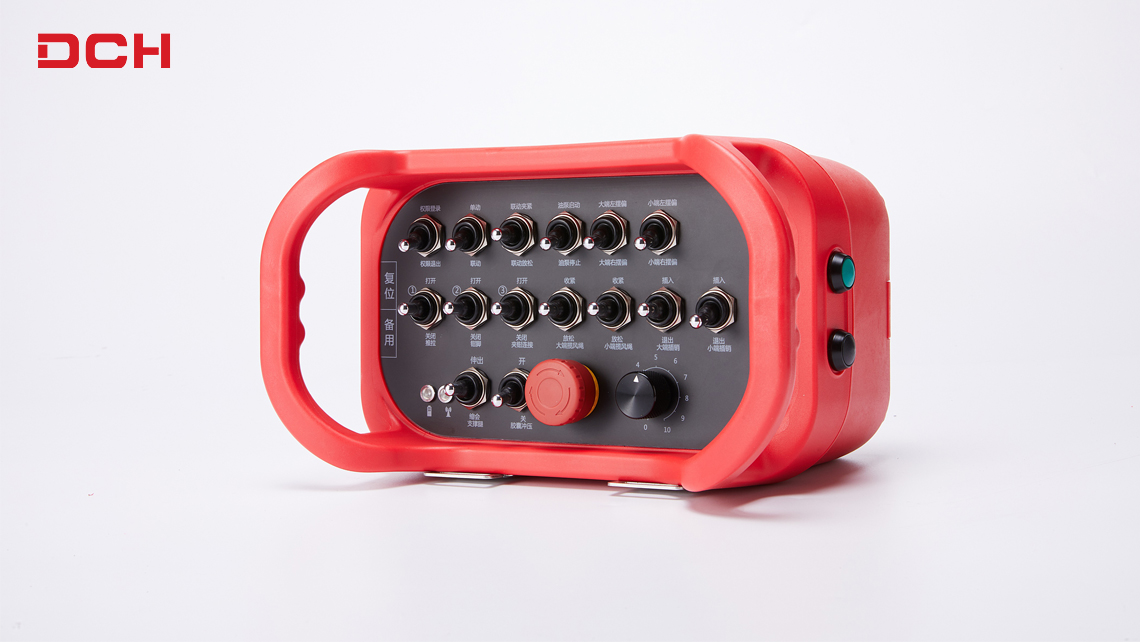

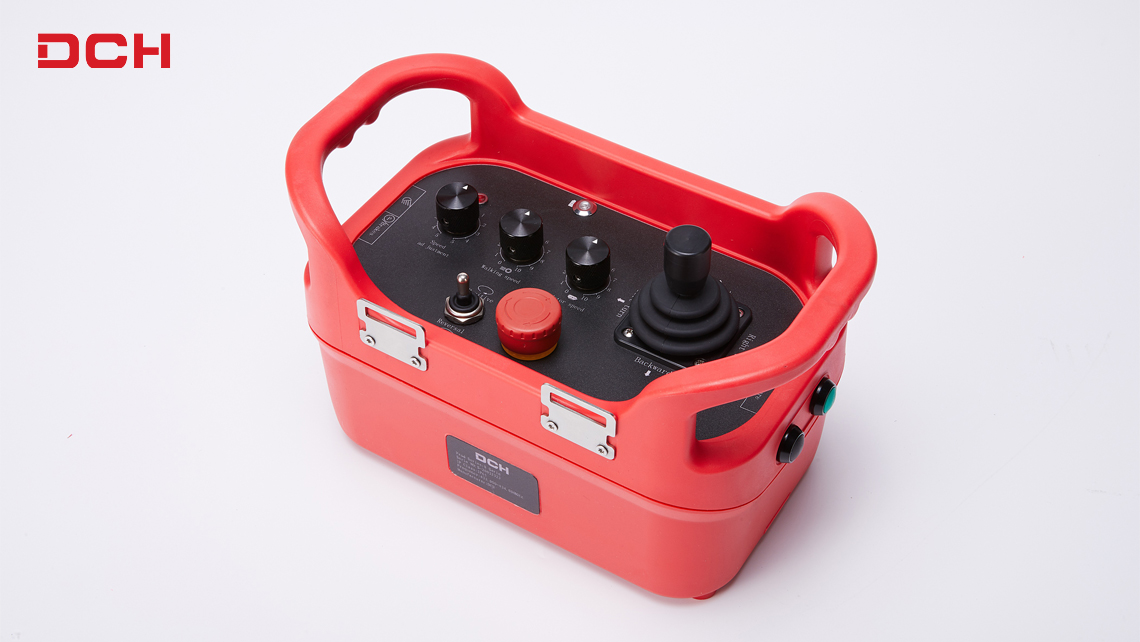

| Gallery |
|
|
|
|
|
|
|
| Max. Output | 24 Digital | 24 Digital 1 Analog | 24 Digital 2 Analog | 24 Digital 3 Analog | 24 Digital 4 Analog | 24 Digital 5 Analog | 24 Digital 6 Analog |
| Dimension | 230×140×100mm | ||||||
| Weight | approx. 1200g-1800g (the weight varies according to the number of buttons, switches or rockers) | ||||||
| Antenna | internal or external | ||||||
| Start mode | click the start button or customize according to customer needs | ||||||
| Emergency stop | mushroom head type, complying with en13849-1 standard | ||||||
| Shell material | high strength engineering plastic | ||||||
| Protection degree | IP65 | ||||||
| Components on sides | start + 3 self reset or self-locking buttons | ||||||
| Support functions | up to 24 digital outputs (keys, toggle switches, rotary switches, etc.) + up to 8 analog outputs (straight rocker, cross rocker or potentiometer, etc.) | ||||||
| Panel identification | customized by customers (for detailed panel drawing library, please ask the sales staff) | ||||||
| Intelligence key | DCH IKey (keys of the same remote controller are common to each other) | ||||||
| Control distance | ≥ 150m (open environment, standard test with transmitter and receiver 1m above the ground) | ||||||
| Temperature | -25℃ ~ 70℃ (-13F ~ 158F) | ||||||
| Frequency | 433 - 434 MHz | ||||||
| LED Indicator | operation indication / fault status / battery power status | ||||||
| Battery | rechargeable Li-ion battery 7.4VDC / 2500mAh | ||||||
| Automatic shutdown | standard 30 minutes (adjustable) | ||||||

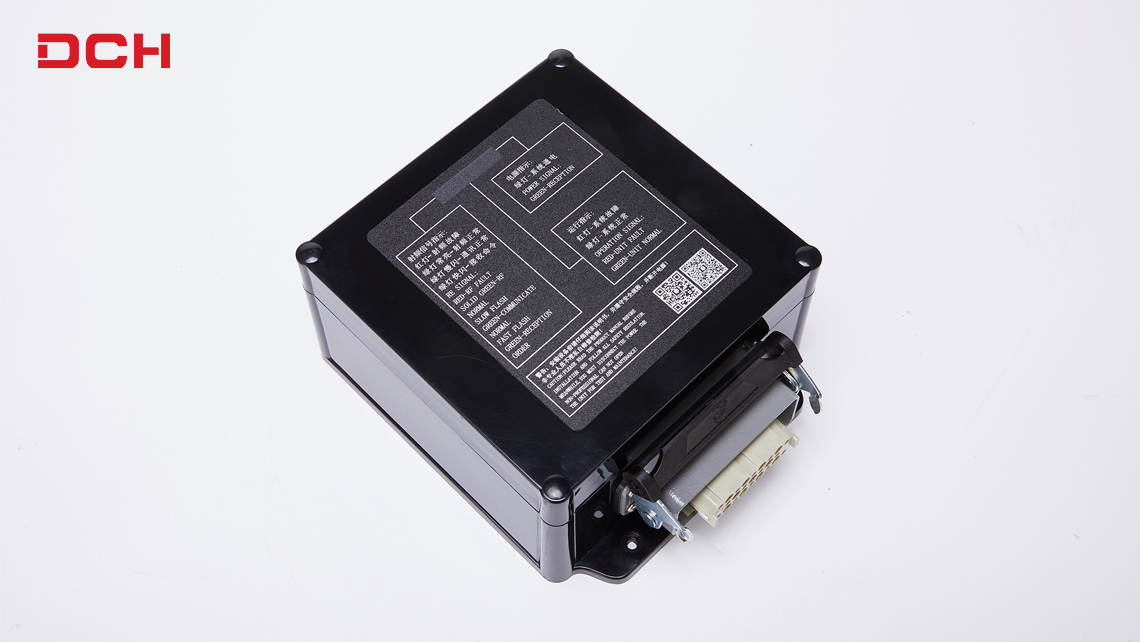

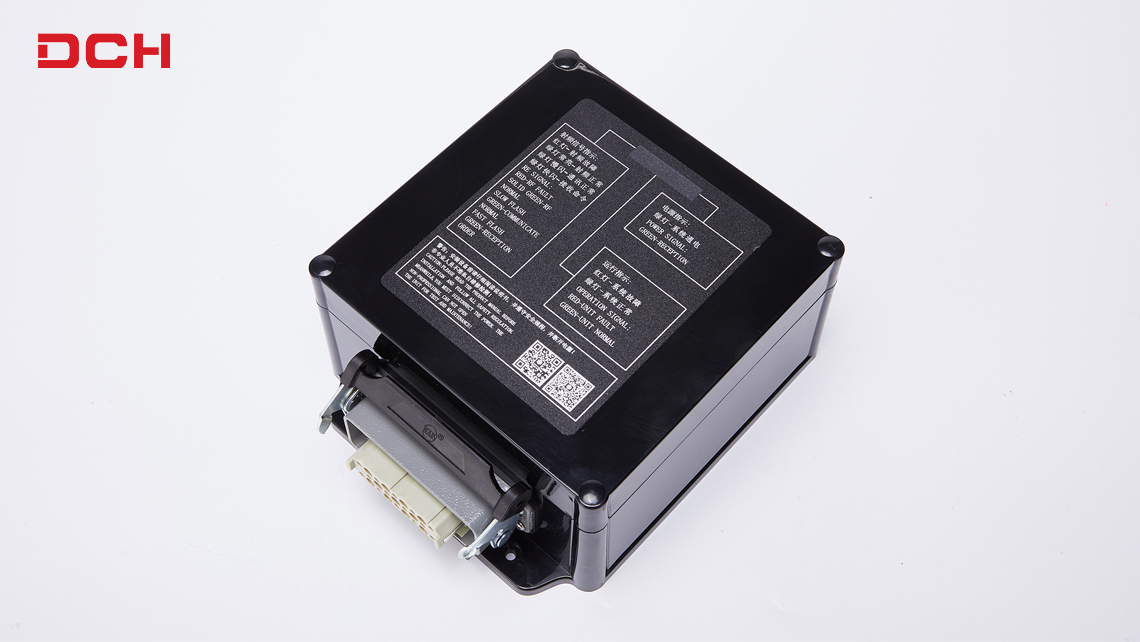

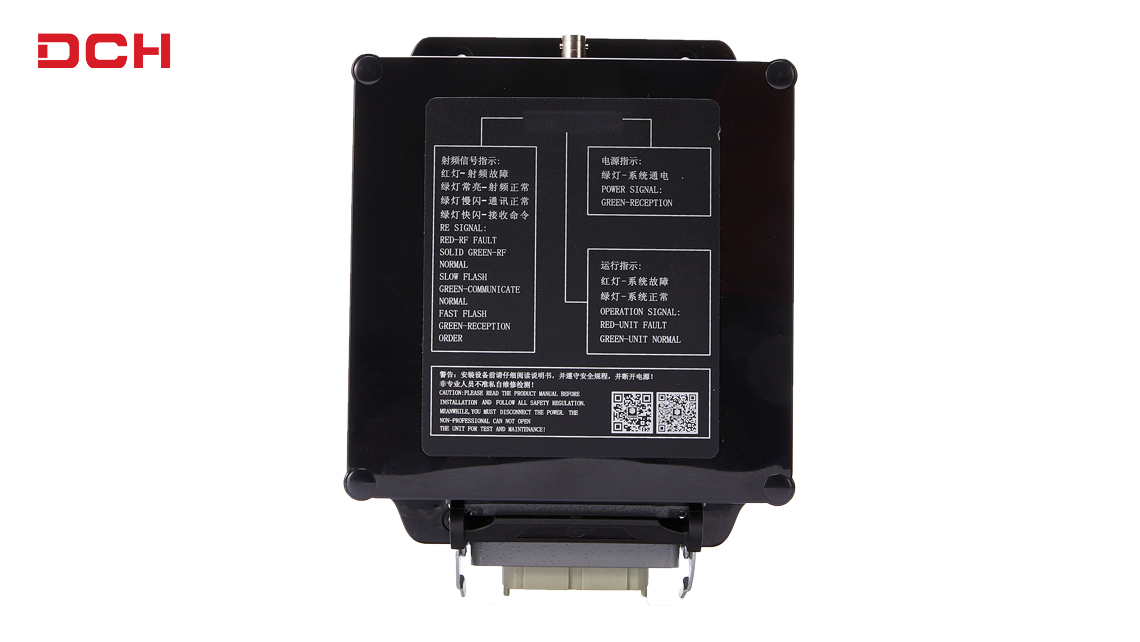

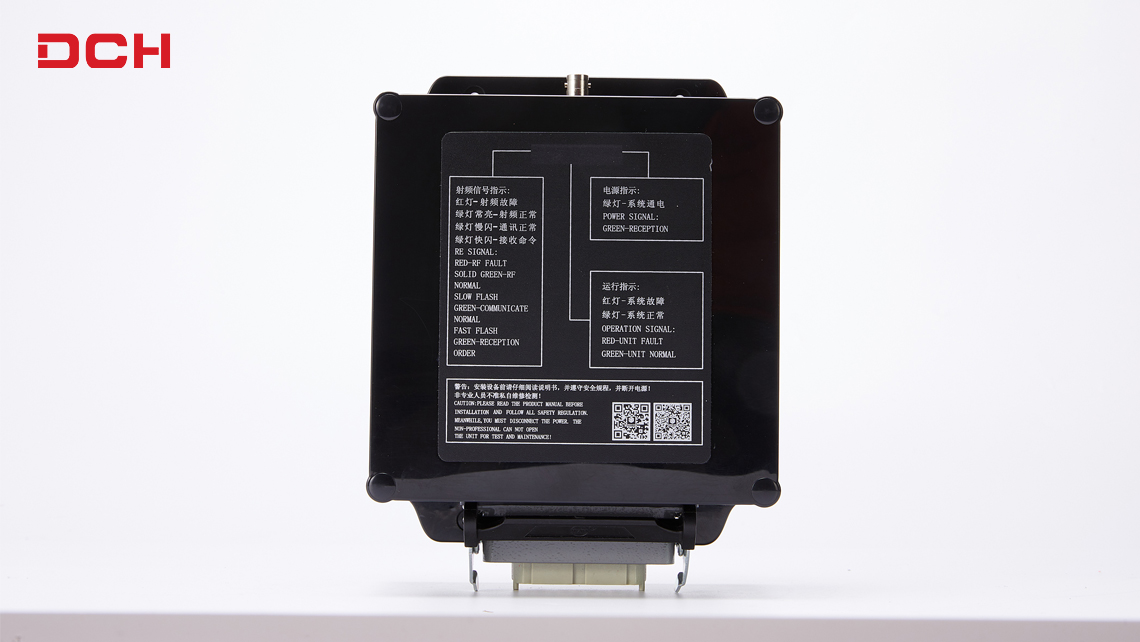

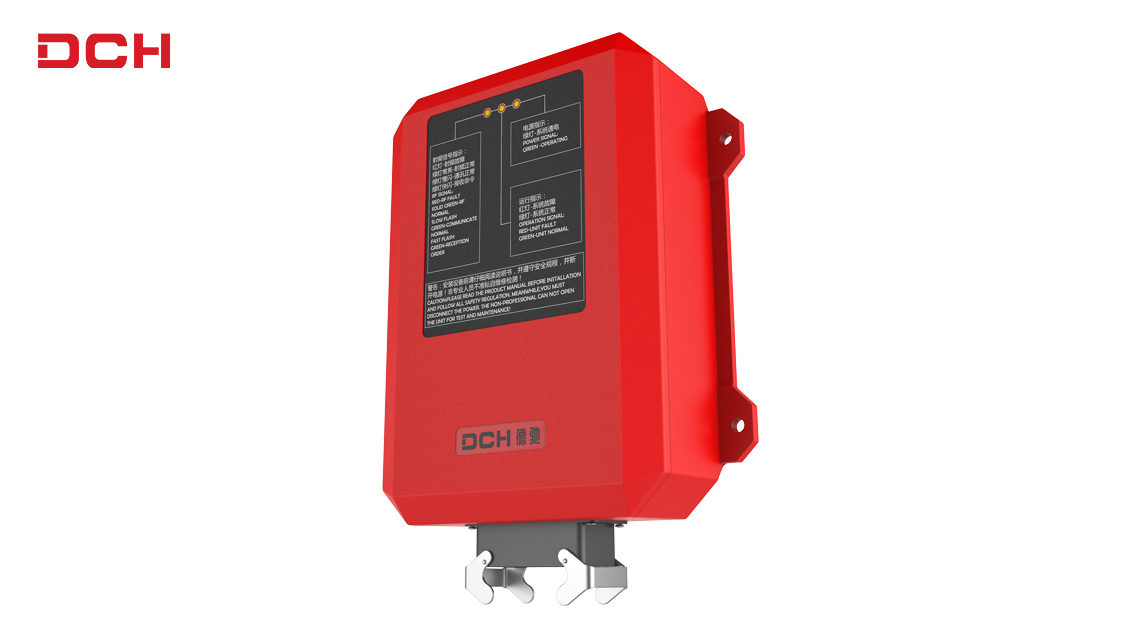

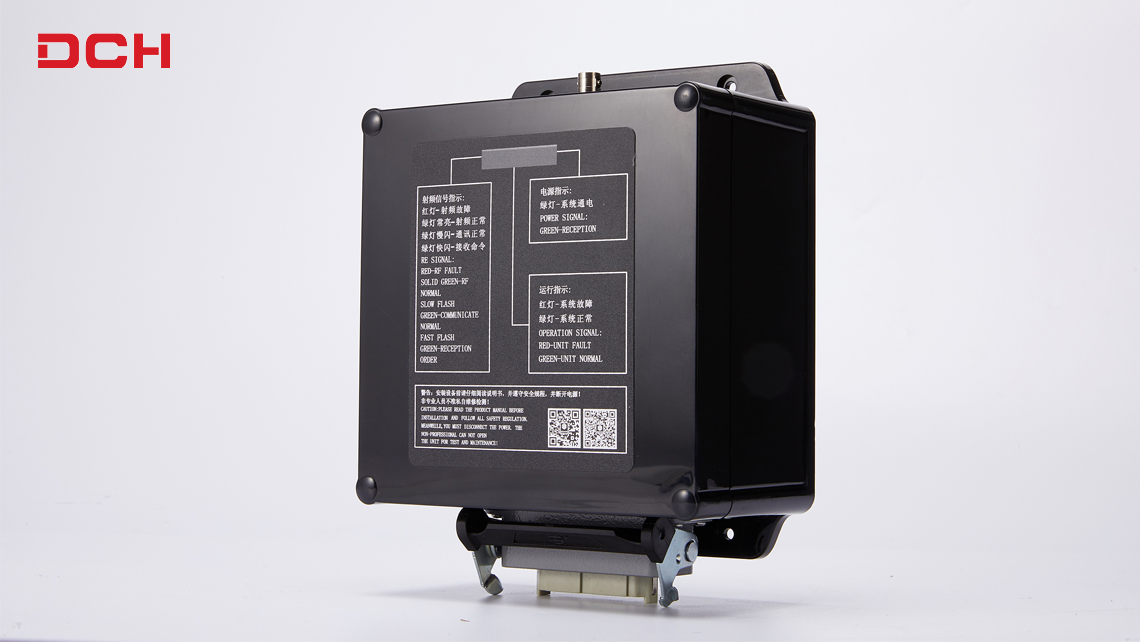

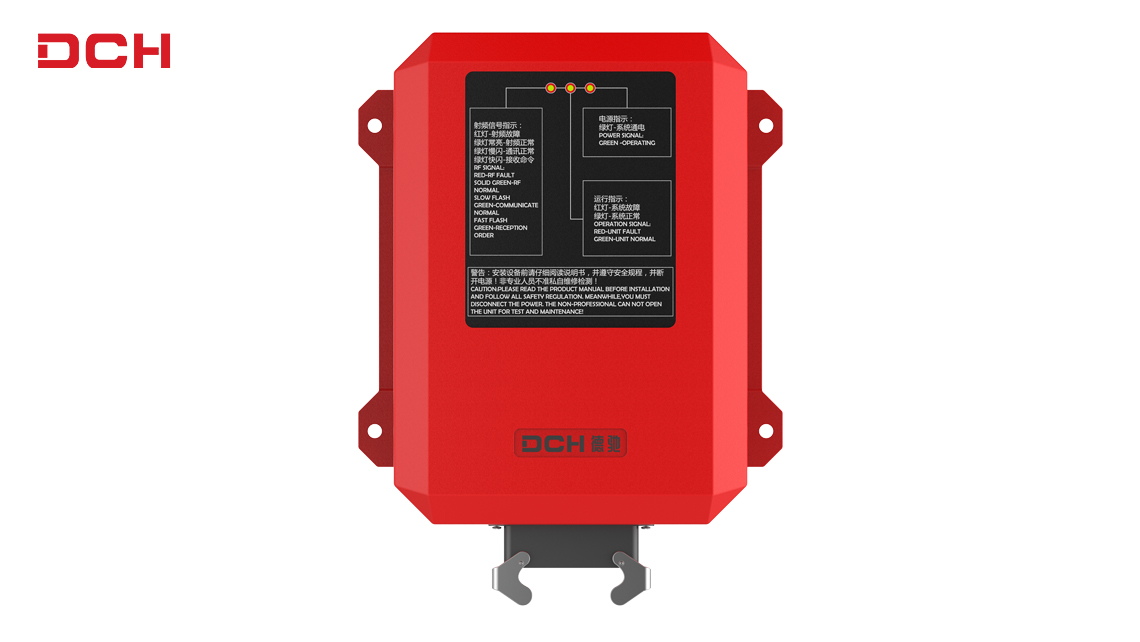

| Model/List | DCH-R30 | DCH-R50 | DCH-P14 | DCH-P28 |
| Gallery |  |
|
 |
 |
| Max. Output | 30 Digital | 50 Digital | 14 Digital 8 PWM or Analog | 28 Digital 8 PWM or Analog |
| Dimension | 265×215×75mm | 160×160×90mm | 265×215×75mm | |
| Weight | 1200g | 1600g | approx. 1200-1500g (depending on the accessories) | approx. 1500-1800g (depending on the accessories) |
| Antenna | External (Option : 3m BNC external sucker antenna) | |||
| Protection | IP65 | |||
| Relay capacity | 5A/250VAC | |||
| Temperature | -25℃ ~ 70℃ (-13F ~ 158F) | |||
| Frequency | 433 - 434 MHz | |||
| Installation accessories | installation of 4 cushioning pads | |||
| LED indicator | operating status indication / RF signal | |||
| Shell Material | ABS high strength engineering plastic | |||
| Output interface | heavy-duty connector, cable output | |||
| Power supply | 18-36VDC/30-280VAC/57-528VAC | |||

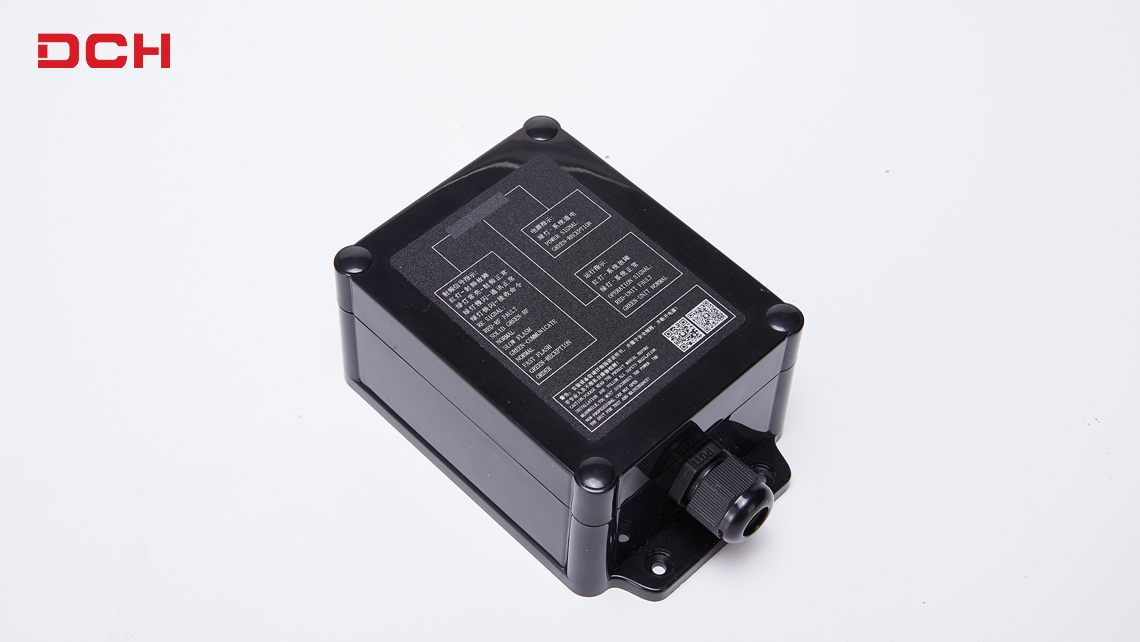

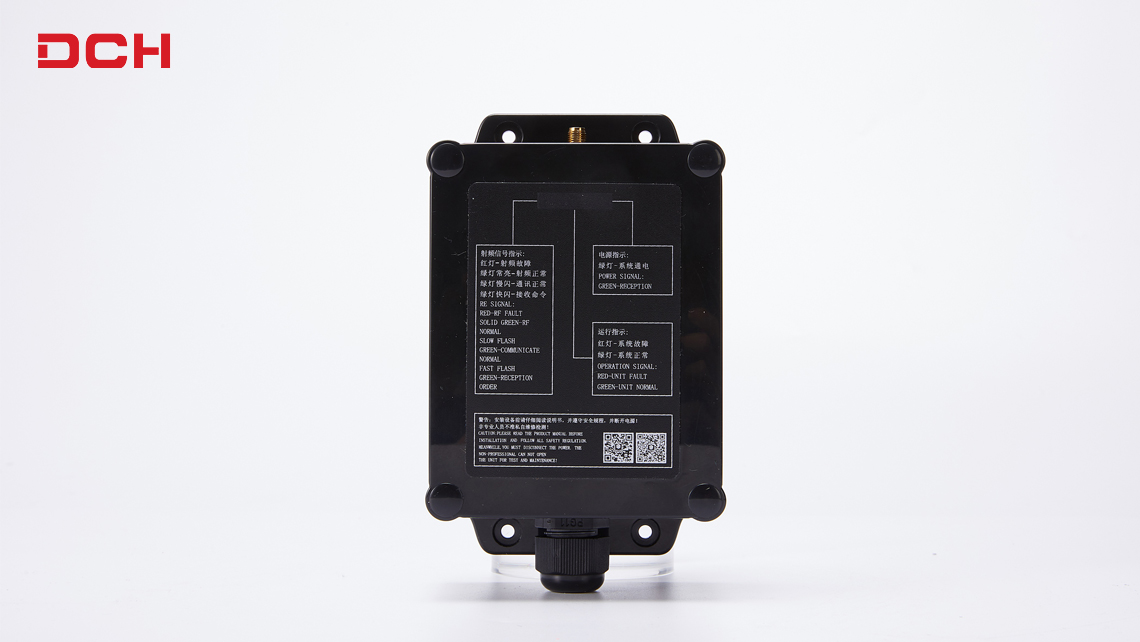

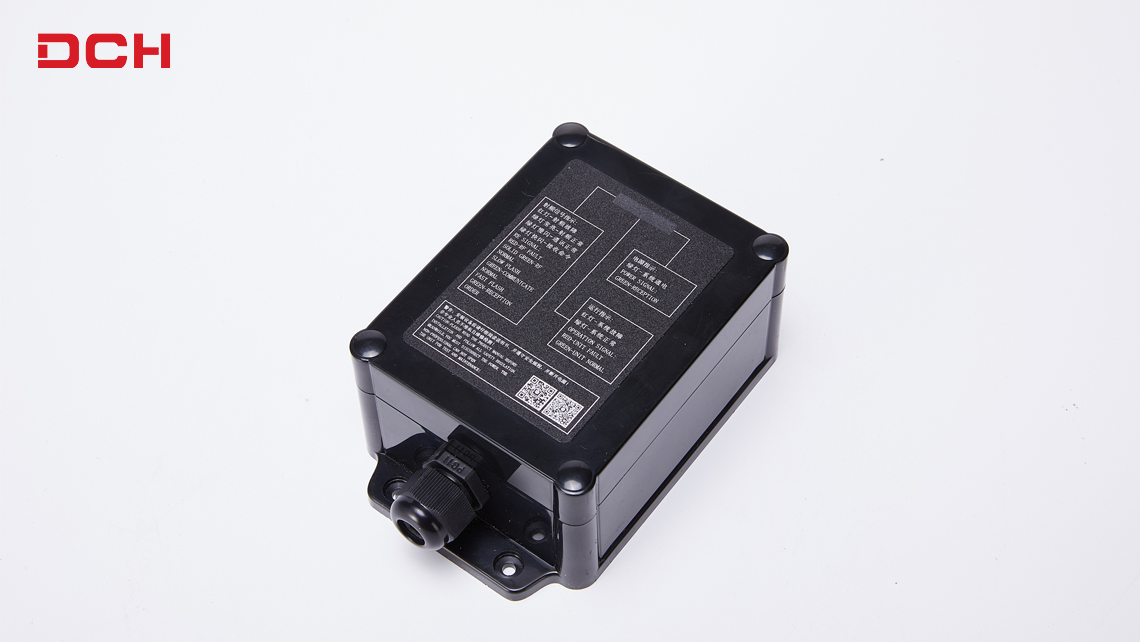

| Model/List | DCH-BM | DCH-BC | DCH-BP | DCH-BN | DCH-BD | DCH-BO |
| Gallery |  |
|
 |
|
 |
|
| Max. Output | RS485 / RS232 | CAN2.0bus | ProfiBus-DP | ProfiNet bus | DeviceNet bus | CANOpen bus |
| Dimension | 140×80×65mm | 160×160×90mm | ||||
| Weight | 200g (excluding antenna and cable) | approx. 1200-1500g (depending on the accessories) | ||||
| Antenna | External (Option : 3m BNC external sucker antenna) | |||||
| Protection | IP65 | |||||
| Temperature | -25℃ ~ 70℃ (-13F ~ 158F) | |||||
| Frequency | 433 - 434 MHz | |||||
| Installation accessories | installation of 4 cushioning pads | |||||
| LED indicator | operating status indication / RF signal / power supply indication | |||||
| Shell Material | ABS high strength engineering plastic | |||||
| Output interface | heavy-duty connector, cable output | heavy-duty connector, cable output and standard 9-pin plug output | heavy-duty connector, cable output and standard network port output | heavy-duty connector, cable output | ||
| Power supply | 9-36vdc (optional) / 30-280VAC / 57-528VAC | |||||
